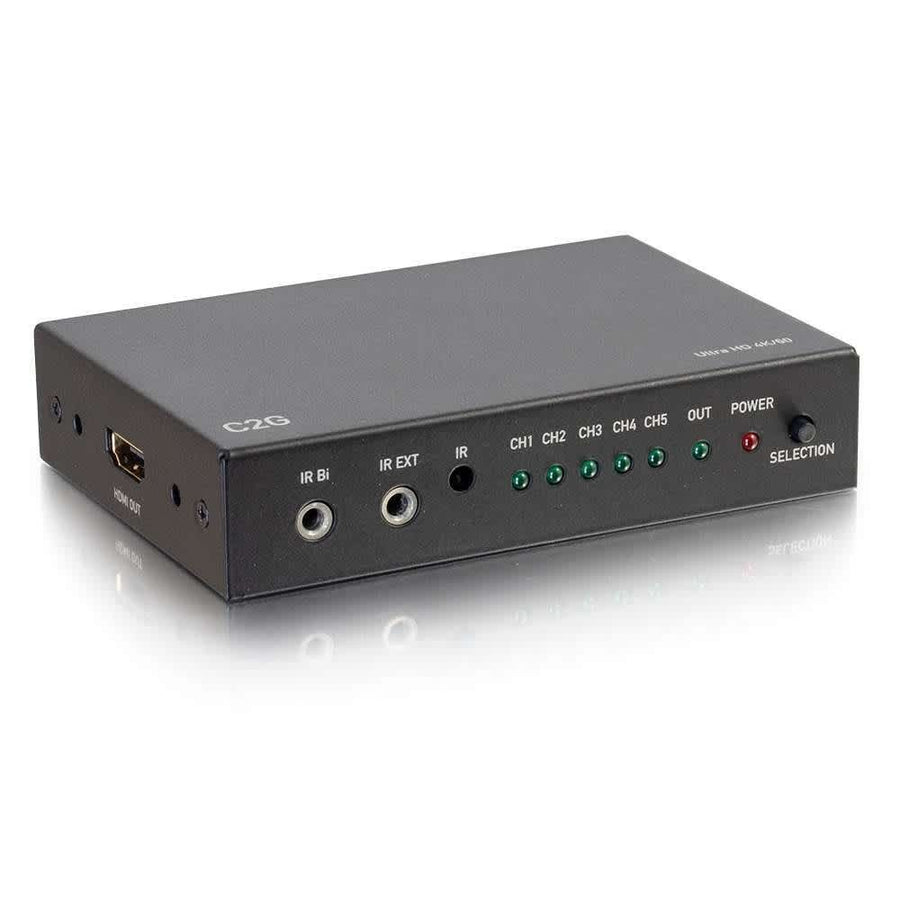

5-Port HDMI® Switch - 4K 60Hz
5-input 1-output HDMI switch supporting 4K @ 60Hz (4:4:4) with IR remote control and EDID management
The CG41397 is a 5-Port HDMI Switch designed to manage multiple video sources through a single output. This active device supports the HDMI 2.0 standard, providing 4K UltraHD resolution up to 3840 x 2160 at 60Hz with 4:4:4 chroma sub-sampling and data rates up to 18Gbps. It is HDCP 2.2 compliant, making it a reliable choice for integrating modern gaming consoles, Blu-ray players, computers, and digital cable or satellite boxes into an existing A/V setup. Users can switch between inputs via a front-mounted manual push button or using a remote control via the IR extension input. The device also includes EDID management and supports 3D video formats for versatile signal routing.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Cable Length | 2.95 in (7.5 cm) |
| Shipping Weight | 1.12 lbs (0.5 kg) |
| Color | Black |
| Connector 1 | (1) HDMI Female |
| Connector 2 | (2) 3.5mm Female(5) HDMI Female |
| Product Type | Active DeviceSwitch |
| TAA Compliant | No |
| UPC | 757120413974 |
| Video Resolution | 1080p4K4K @ 30Hz4K @ 60Hz |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
Resources
Questions about this part
Will the CG41397 work with 4K 60Hz displays?
Yes, this switch supports resolutions up to 4K @ 60Hz with 4:4:4 chroma sub-sampling and HDMI 2.0 standards.
How can I switch between the five HDMI sources?
You can switch inputs using the manual push button located on the front of the unit or via a remote control through the IR extension input.
Is the CG41397 HDCP compliant?
The CG41397 is HDCP 2.2 compliant, ensuring compatibility with modern high-definition content protection standards.
Does this switch support 3D video?
Yes, this device features 3D support and includes EDID management for better signal handling between sources and displays.
What power requirements does this HDMI switch have?
The device operates on a 5V, 1.2A power supply to ensure stable active switching.
