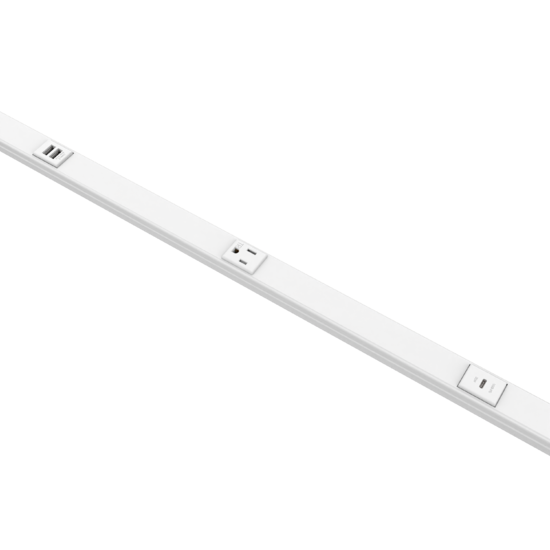

5' Plugmold® Multioutlet System with USBC and USBA in White Painted
5' White multioutlet system with 15A tamper-resistant receptacles, USB-C 30W PD, and USB-A 2.4A ports
The Wiremold WH20GB509TRUAC is a 5 ft (1.5 m) Plugmold® Multioutlet System designed to integrate device charging directly into your power raceway. This system features 15A tamper-resistant receptacles and is built with a 0.040'' (1.0 mm) steel housing in a White finish. For modern connectivity, it includes USB-C ports providing 30W Power Delivery (PD) and USB-A ports delivering 2.4 Amps (shared between two ports) at 5VDC. The charging load on one module does not impact the performance of other USB modules in the system. This unit is manufactured in the United States and is cULus listed. The assembly is supplied with one (1) Coupling and two (2) Blank End Fittings for a finished installation. The system utilizes a 3-wire, #12 THHN configuration consisting of one hot, one neutral, and one insulated ground conductor, with 9'' spacing between outlets.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Length | 5 ft (1.5 m) |
| Color | White |
| Federal Ops Country of Origin | United States |
| USB Port | Yes |
| Certifications | cULus |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
Resources
Questions about this part
How much power does the USB-C port provide?
The USB-C port delivers 30W Power Delivery (PD) for high-speed device charging.
What is the charging capacity for the USB-A ports?
The USB-A ports provide 2.4 Amps at 5VDC, which is shared between the two ports.
Does using one USB module affect the others in the series?
No, the charging load on one module will not affect the charging performance of other USB modules in the product.
What kind of wiring is required for this Plugmold system?
This system requires 3-wire #12 THHN, which includes one hot, one neutral, and one insulated ground conductor.
What is included with the WH20GB509TRUAC for installation?
Each unit is supplied with one (1) Coupling and two (2) Blank End Fittings.
