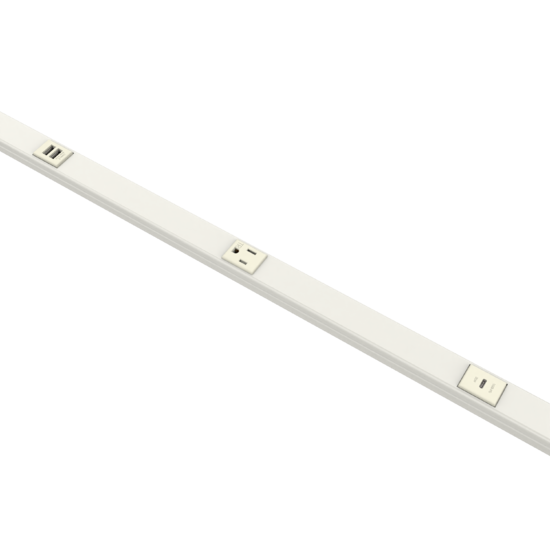

5' Plugmold® Multioutlet System with USBC and USBA in Ivory Painted
5 ft (1.5 m) multioutlet system in Ivory featuring USB-C 30W PD and USB-A charging ports
The V20GB509TRUAC is a 5 ft (1.5 m) Plugmold® Multioutlet System designed to provide integrated power and high-speed device charging. This Ivory painted unit features 9'' spacing between 15A tamper-resistant receptacles. It is built with a .040'' (1.0 mm) steel housing and utilizes a 3-wire, #12 THHN configuration consisting of one hot, one neutral, and an insulated ground conductor. For modern device connectivity, this system includes USB-C ports providing 30W PD and USB-A ports that deliver 2.4 Amps (shared between two ports) at 5VDC. The design ensures that the charging load on a single module does not impact the charging performance of other USB modules within the product. This system is cULus listed and manufactured in the United States.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Length | 5 ft (1.5 m) |
| Color | Ivory |
| Federal Ops Country of Origin | United States |
| USB Port | Yes |
| Certifications | cULus |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
Resources
Questions about this part
How much power does the USB-C port provide?
The USB-C port supports 30W Power Delivery (PD) for fast charging.
Will charging one USB module affect the others?
No, the charging load on one module will not affect the charging performance of the other USB modules in the system.
What is the wiring requirement for this system?
This unit requires a 3-wire, #12 THHN configuration consisting of one hot, one neutral, and an insulated ground conductor.
Is this Wiremold system cULus listed?
Yes, this product is cULus listed and compliant with ROHS and USMCA standards.
What does the manufacturer provide with the unit?
Each unit is supplied with one (1) Coupling and two (2) Blank End Fittings.
