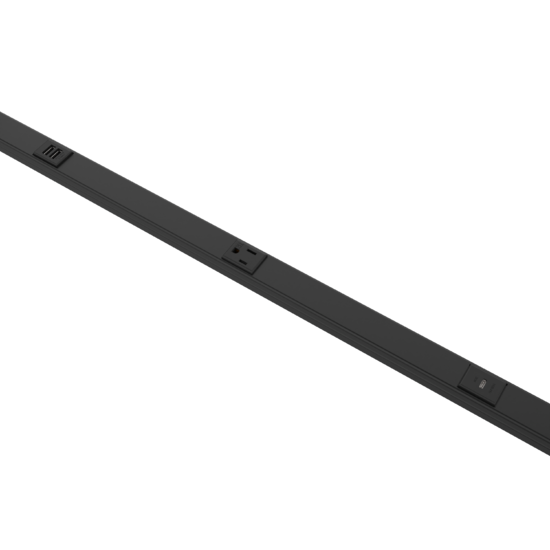

5' Plugmold® Multioutlet System with USBC and USBA in Black Painted
5' black multioutlet system with 30W USB-C Power Delivery and USB-A charging ports
The Wiremold BK20GB509TRUAC is a 5' (1.5 m) Plugmold multioutlet system finished in black painted steel. This assembly features 15A tamper-resistant receptacles and utilizes a 3-wire, #12 THHN configuration, including one hot, one neutral, and an insulated ground conductor. Integrated into the .040'' (1.0 mm) steel housing are both USB-A and USB-C charging modules. The USB-C port provides 30W PD, while the USB-A ports share 5VDC at 2.4 Amps. Notably, the charging load on one module does not impact the performance of other USB modules within the system. This unit ships with one coupling and two blank end fittings to facilitate installation.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Length | 5 ft (1.5 m) |
| Color | Black |
| Federal Ops Country of Origin | United States |
| USB Port | Yes |
| Certifications | cULus |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
Resources
Questions about this part
What charging power is available from the USB ports?
The USB-C port supports 30W Power Delivery (PD), while the USB-A ports provide 2.4 Amps at 5VDC shared between two ports.
What is included with the BK20GB509TRUAC for installation?
Each unit is supplied with one (1) coupling and two (2) blank end fittings.
Does the USB charging load affect other modules in the series?
No, the charging load on one module will not affect the charging performance of the other USB modules in the product.
What is the wire requirement for this multioutlet system?
This system requires a 3-wire, #12 THHN setup consisting of one hot, one neutral, and one insulated ground conductor.
What is the difference between this and other PlugmoldUSBC models?
This specific SKU features a black painted finish and is a 5' (1.5 m) length; other variants in the series offer different colors like White, Gray, or Stainless Steel.
