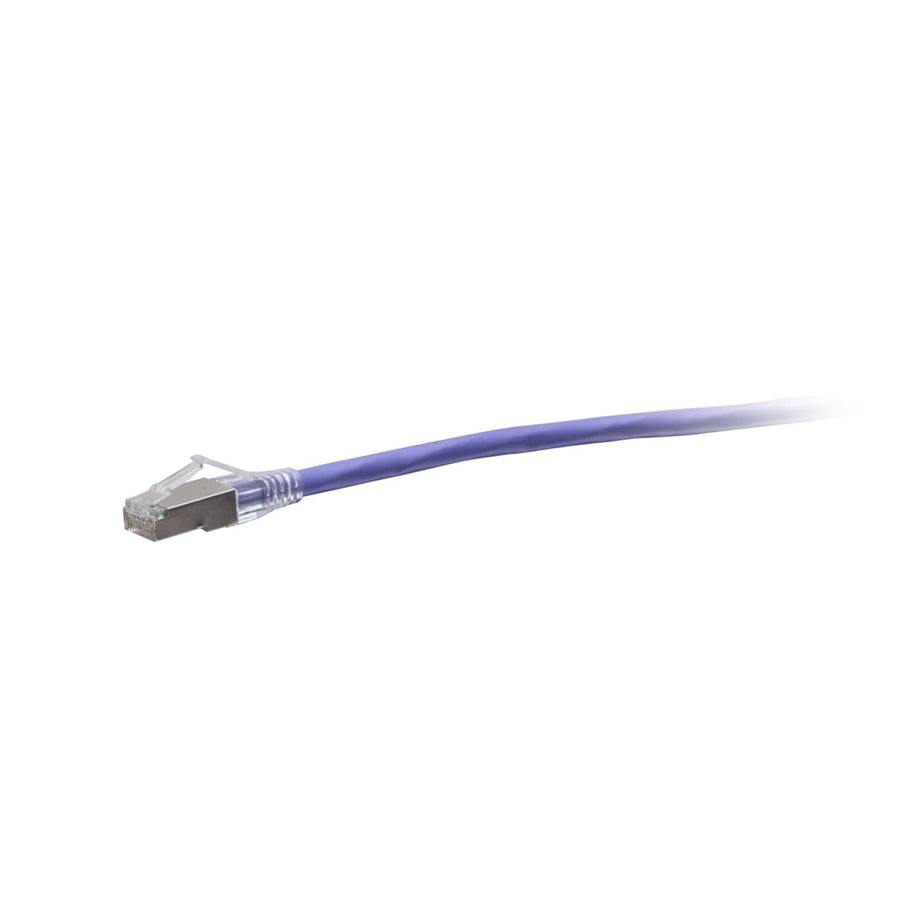

4ft (1.2m) TAA-Compliant F-Series Cat6a Snagless Shielded (STP) Network Cable - Purple
Purple Cat6a snagless shielded STP patch cable, 4 ft (1.2 m) length, TAA-compliant for government use
The C2G43942 is a 4 ft (1.2 m) TAA-compliant F-Series Cat6a snagless shielded (STP) network cable finished in purple. Engineered to meet ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards, this cable supports 10GBASE-T (10 Gigabit Ethernet) applications. It features high-quality, made in the USA copper stranded conductors with an aluminum foil shield designed to mitigate EMI, RFI, and alien crosstalk. The cable is rated for CMR riser applications and features a PVC jacket. For reliable signal integrity in high-frequency environments, the RJ-45 male connectors are equipped with 50-micron gold-plated contacts. The snagless design protects the clips from damage during high-cycle insertion and removal. This passive cable is rated for operating temperatures between -4°C to 167°F (-20°F to 75°C) and is appropriate for use with network adapters, hubs, switches, routers, modems, and patch panels in 10GBase-T environments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 4 ft (1.2 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | STP |
| Shipping Weight | 0.11 lbs (0.1 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Shielded STP |
| Cable Type | Snagless |
| Color | Purple |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120439424 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
20 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP2050NA$94.99
42 Inch Enclosure with Screw-On Cover
EN4200$189.99
9 Inch Dual-Purpose In-Wall Enclosure
ENP0900NA$39.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
Questions about this part
Is the C2G43942 TAA compliant for government contracts?
Yes, this cable meets TAA compliant requirements, making it approved for use in United States government projects and facilities.
What is the maximum data speed supported by the C2G43942?
This Cat6a cable supports 10GBASE-T (10 Gigabit Ethernet) applications and is designed for bandwidth-intensive 10GBase-T ports.
What type of shielding does this cable use?
The C2G43942 uses Shielded STP (Shielded Twisted Pair) construction with an aluminum foil shield to protect against EMI, RFI, and alien crosstalk.
Does the C2G43942 have a warranty?
This cable is covered by a lifetime warranty from the manufacturer.
What is the jacket rating for this cable?
The C2G43942 features a PVC jacket with a CMR riser rating, suitable for vertical paths in building installations.
