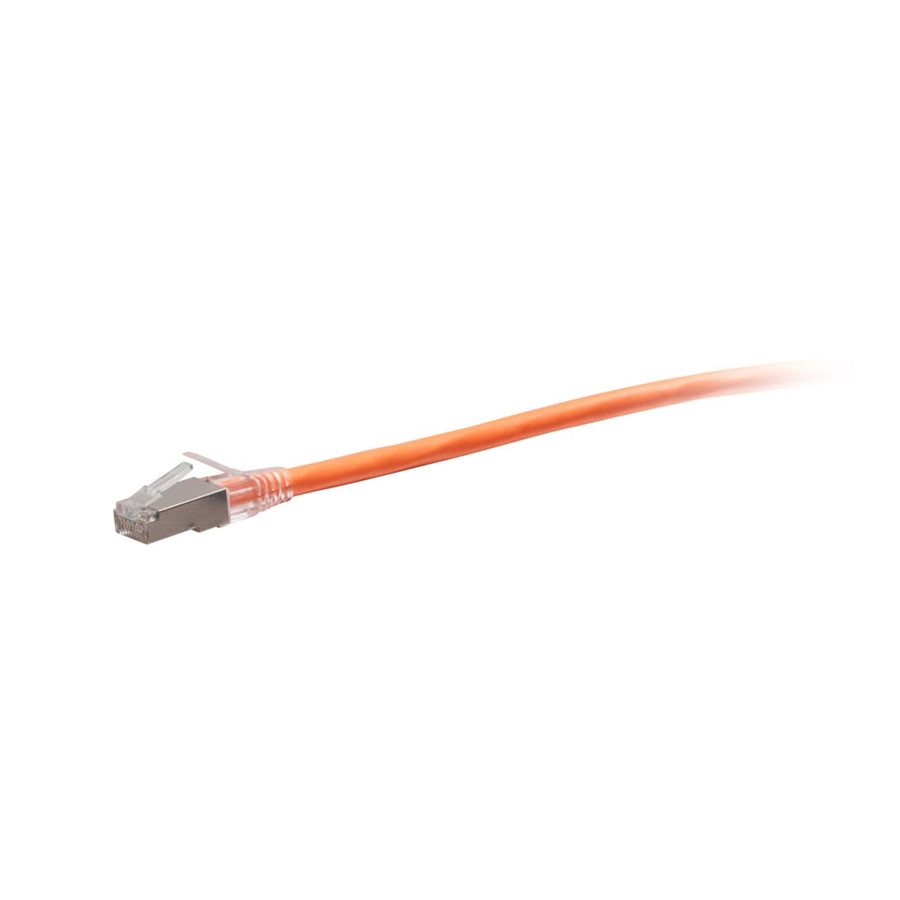

4ft (1.2m) TAA-Compliant F-Series Cat6a Snagless Shielded (STP) Network Cable - Orange
4ft Cat6a shielded STP patch cable, orange, TAA-compliant, with snagless RJ45 connectors for 10GBASE-T applications
The C2G43921 is a 4ft (1.2m) Cat6a shielded STP network cable designed for high-performance data environments. This TAA-compliant cable is built to meet stringent requirements for United States government projects and facilities. It utilizes a stranded copper conductor with 26 AWG wire gauge and 50-micron gold-plated contacts to maintain signal integrity during high-speed data transfers. The cable features a snagless RJ45 male to RJ45 male connector design, which protects the clips from damage during high-frequency insertion cycles. Designed for 10GBASE-T equipment, this orange cable is ideal for connecting network adapters, switches, routers, hubs, and patch panels. The shielded STP construction, utilizing an aluminum foil shield, protects 10 Gigabit network connections from EMI, RFI, and alien crosstalk. This CMR-rated riser cable features a PVC jacket and is rated for operating temperatures between -4°C and 75°C (-20°F to 167°F). It adheres to ANSI/TIA-568.2-D and ISO/IEC 11801-1 standards, ensuring reliable bandwidth-intensive performance for voice, data, and video distribution.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 4 ft (1.2 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | STP |
| Shipping Weight | 0.11 lbs (0.1 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Shielded STP |
| Cable Type | Snagless |
| Color | Orange |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120439219 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
20 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP2050NA$94.99
42 Inch Enclosure with Screw-On Cover
EN4200$189.99
9 Inch Dual-Purpose In-Wall Enclosure
ENP0900NA$39.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
Questions about this part
Is the C2G43921 TAA compliant for government use?
Yes, this cable is TAA-compliant and is approved for use in United States government projects and facilities.
What type of shielding does this Cat6a cable provide?
This is a shielded STP cable that uses an aluminum foil shield to protect connections from EMI, RFI, and alien crosstalk.
Will this cable work for 10 Gigabit Ethernet applications?
Yes, this cable is designed for 10GBASE-T ports and equipment, including network adapters, switches, and routers.
What is the temperature range for this orange patch cable?
The cable is rated for an operating temperature range of -4°C to 75°C (-20°F to 167°F).
What is the difference between this and the standard Unshielded Cat6a?
This SKU features an aluminum foil STP shield to counter interference, whereas unshielded versions lack this specific EMI/RFI protection.
