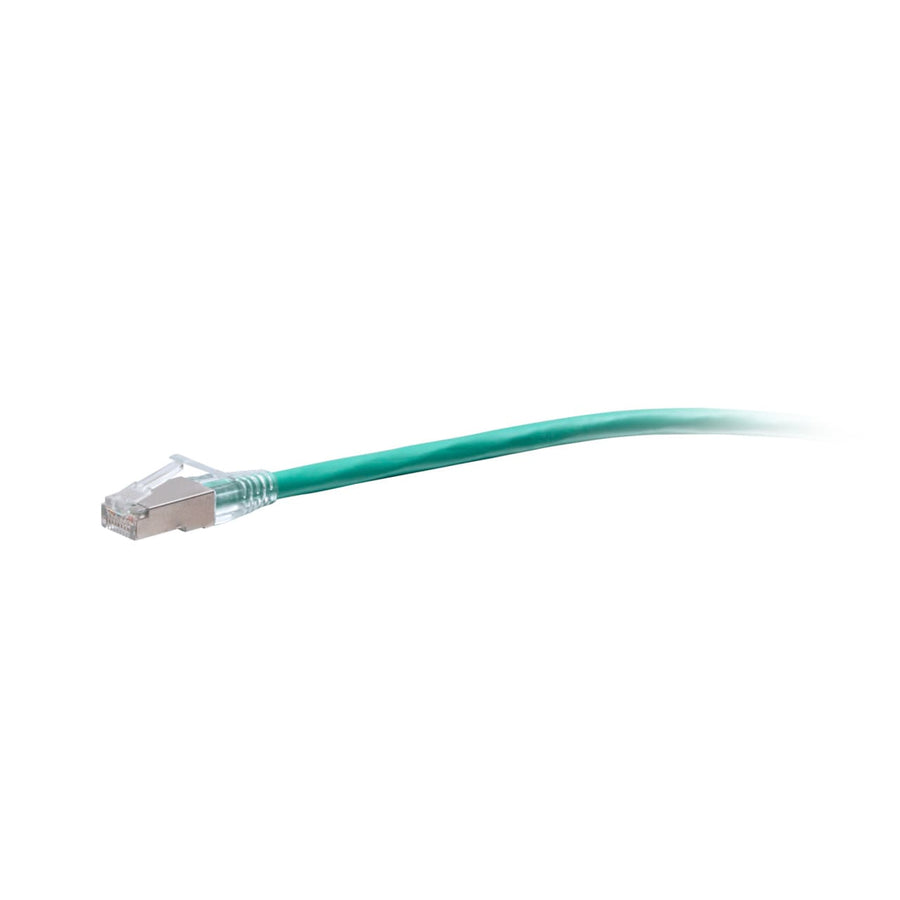

4ft (1.2m) TAA-Compliant F-Series Cat6a Snagless Shielded (STP) Network Cable - Green
4ft Cat6a shielded STP network cable, TAA-compliant, green snagless RJ45 connectors for 10GBASE-T connectivity
The C2G43858 is a 4ft (1.2m) TAA-compliant F-Series Cat6a snagless shielded (STP) network cable in green. This passive cable is specifically engineered for 10GBase-T ports and high-speed equipment, including network adapters, hubs, switches, routers, and patch panels. To protect high-speed 10 Gigabit network connections from electromagnetic interference (EMI), radio frequency interference (RFI), and alien crosstalk, this cable utilizes a shielded STP construction with an aluminum foil shield and copper stranded conductors. Built with high-quality, made in the USA raw cable, it ensures reliable performance and meets ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards. The snagless RJ45 connector design features 50-micron gold-plated contacts to improve signal integrity and protects the clips from breakage during high-frequency insertion cycles. This CMR-rated riser cable is suitable for voice, data, and video distribution in environments requiring high bandwidth and low impedance. The green PVC jacket allows for easy color-coding within complex network installations.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 4 ft (1.2 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | STP |
| Shipping Weight | 0.11 lbs (0.1 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Shielded STP |
| Cable Type | Snagless |
| Color | Green |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120438588 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
20 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP2050NA$94.99
42 Inch Enclosure with Screw-On Cover
EN4200$189.99
9 Inch Dual-Purpose In-Wall Enclosure
ENP0900NA$39.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
Questions about this part
Is the C2G43858 suitable for government installations?
Yes, this cable is TAA-compliant, making it approved for use in United States government projects and facilities.
Will this Cat6a cable support 10 Gigabit Ethernet?
Yes, this cable is designed for 10GBASE-T equipment and supports bandwidth-intensive 10 Gigabit Ethernet applications.
What shielding does the C2G43858 use to prevent interference?
This cable uses Shielded STP construction with an aluminum foil shield to protect against EMI, RFI, and alien crosstalk.
What is the maximum operating temperature for this cable?
The cable is rated for operating temperatures ranging from -4°C to 75°C (-20°F to 167°F).
What documentation is available for submittals?
A technical PDF for the TAA Compliant F-Series Cat6a Snagless Shielded Network Cable is available for download.
