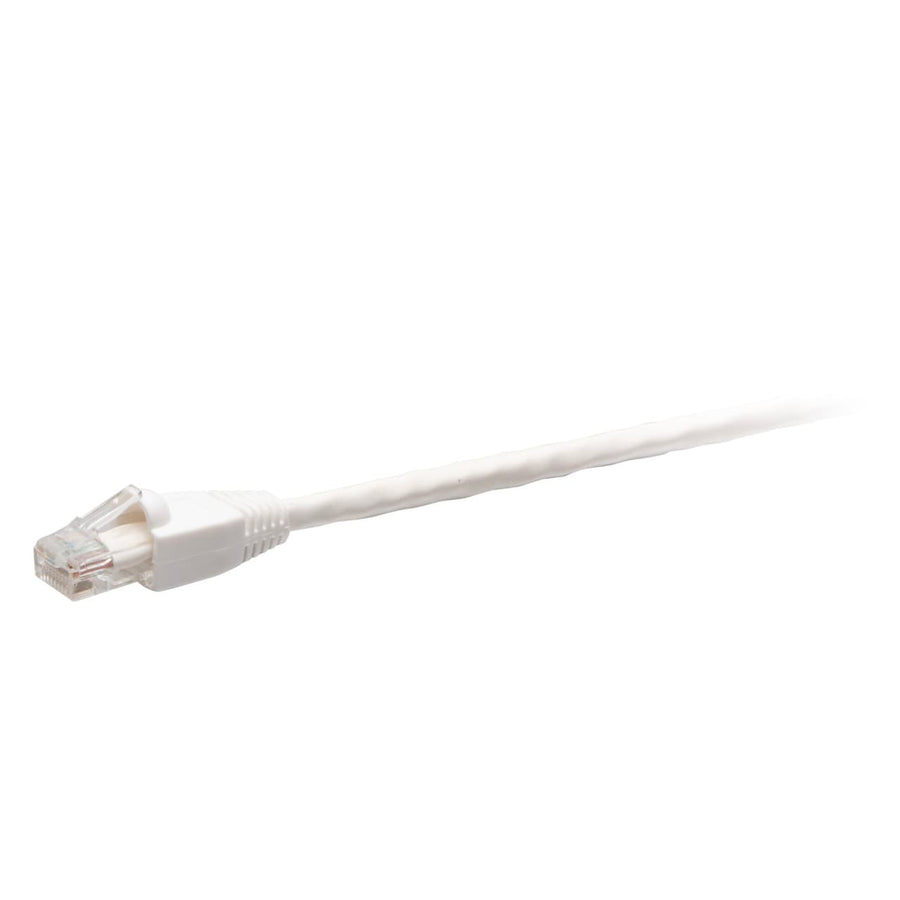

4ft (1.2m) TAA-Compliant F-Series Cat6 Snagless Unshielded (UTP) Network Cable - White
4ft white Cat6 snagless UTP network cable, TAA-compliant, with CMR rated riser jacket and 50-micron gold-plated contacts
C2G43573 is a 4 ft (1.2 m) TAA-compliant F-Series Cat6 snagless unshielded (UTP) network cable designed for high-performance connectivity in US government projects and facilities. This passive cable utilizes high-quality, made in the USA copper stranded conductors to support various networking hardware including switches, routers, hubs, servers, and network adapters. It is engineered to meet or exceed ANSI/TIA-568.2-D and ISO/IEC 11801-1 standards, providing a maximum frequency of 600 MHz to support 1000BASE-T (1 Gigabit Ethernet) applications. Each cable features 50-micron gold-plated RJ-45 male contacts to ensure signal integrity and a molded snagless boot to protect the clips from damage during high-frequency insertion cycles. The white PVC jacket is CMR rated for riser applications and can operate in temperatures ranging from -4°F to 167°F (-20°C to 75°C). This SKU is part of the F-Series, which is available in various colors and lengths up to 100ft.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 4 ft (1.2 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 0.12 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Snagless |
| Color | White |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120435730 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
48-Port Cat6 110-Type Patch Panel
CG37200$327.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Screw-On Cover
EN4200$189.99
20 Inch Enclosure with Hinged Door
EN2050$149.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
Questions about this part
Is the C2G43573 TAA compliant?
Yes, this is a TAA-compliant F-Series network cable approved for use in US government projects and facilities.
What is the maximum frequency and speed support for this Cat6 cable?
This cable provides an enhanced 600 MHz maximum frequency and is rated for 1000BASE-T (1 Gigabit Ethernet) applications.
What kind of jacket rating does this white Cat6 cable have?
This cable features a CMR rated PVC jacket designed for riser applications and is suitable for operating temperatures from -4°F to 167°F.
Does the C2G43573 include snagless protection?
Yes, the molded snagless boot protects the RJ-45 clips from being snapped off, making it suitable for environments with high insertion cycles.
What other products are compatible with this cabling?
This cable can be used with various accessories including the CG37094 Two Port Keystone Single Gang Wall Plate and the CG37200 48-Port Cat6 110-Type Patch Panel.
