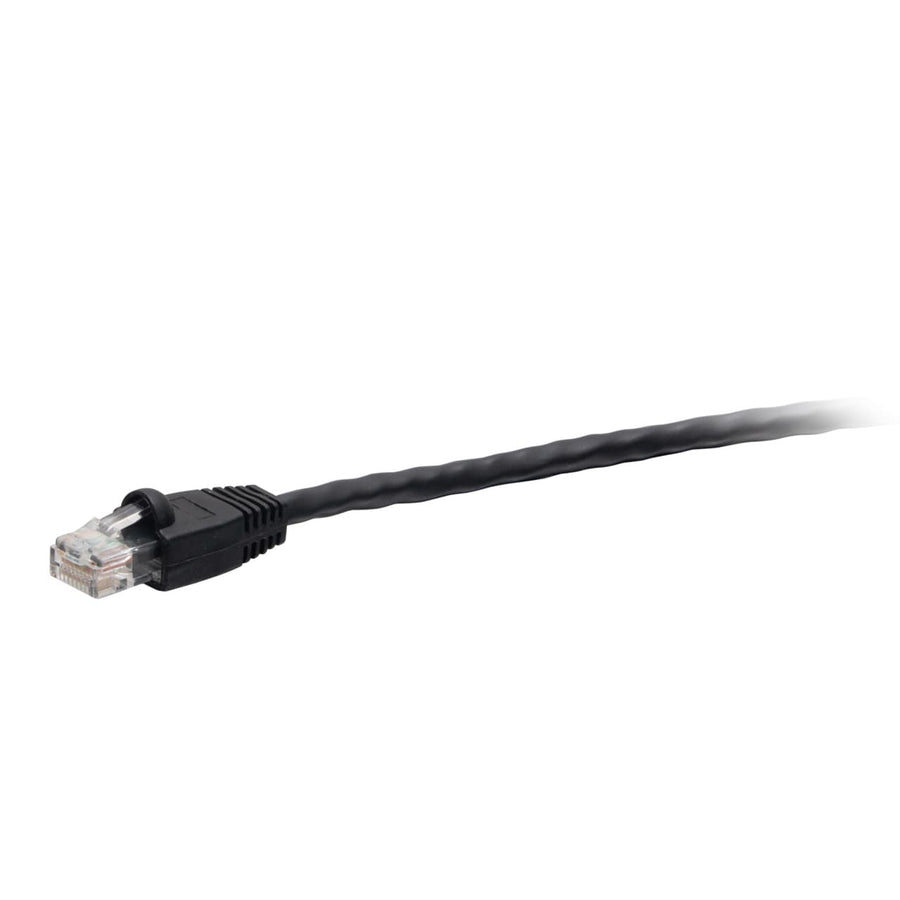

4ft (1.2m) TAA-Compliant F-Series Cat6 Snagless Unshielded (UTP) Network Cable - Black
4ft TAA-compliant Cat6 UTP network cable with snagless RJ45 connectors and black PVC jacket
The C2G43468 is a 4ft (1.2m) TAA-compliant Cat6 Snagless Unshielded (UTP) Network Cable designed for use in United States government projects and facilities. This passive cable is built with high-quality, made in the USA copper cabling, featuring stranded conductors and a 24-gauge wire profile. It is engineered to meet or exceed ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards, supporting applications such as 1000BASE-T (1 Gigabit Ethernet) with an enhanced 600 MHz maximum frequency. The black PVC jacket is CMR rated and riser rated for vertical installations. Each end features a standard RJ-45 Male connector with 50-micron gold-plated contacts to improve signal integrity. The molded, snagless boot design protects the clips from snapping during high-frequency insertion cycles and provides strain relief. This cable operates in temperatures ranging from -4° to 167°F (-20° to 75°C).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 4 ft (1.2 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 0.12 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Snagless |
| Color | Black |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120434689 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Questions about this part
Is the C2G43468 TAA compliant?
Yes, this is a TAA-compliant cable approved for use in United States government projects and facilities.
What is the maximum frequency for this Cat6 cable?
This cable features an enhanced 600 MHz maximum frequency to provide increased performance over standard Cat6 cables.
Will the connector clips break easily during installation?
The snagless RJ45 connector design includes a molded boot to protect clips from being snapped off during installation and high insertion cycles.
Can this cable be used in vertical riser applications?
Yes, the cable features a CMR rated PVC jacket specifically rated for riser applications.
What is the wiring scheme for the C2G43468?
This cable uses the T568B wiring scheme and features 24-gauge stranded copper conductors.
