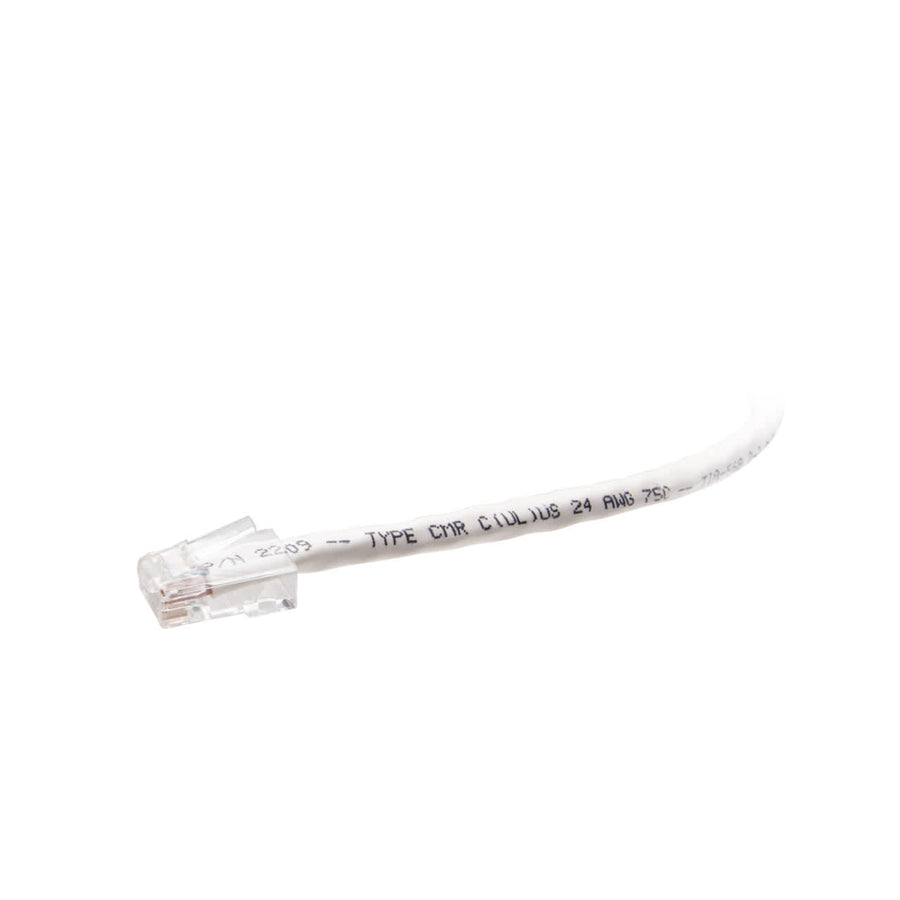

4ft (1.2m) TAA-Compliant F-Series Cat6 Non-Booted Unshielded (UTP) Network Cable - White
4ft TAA-compliant Cat6 UTP network cable with non-booted RJ-45 connectors and white PVC jacket
The C2G43687 is a 4ft (1.2m) TAA-compliant Cat6 unshielded twisted pair (UTP) network cable designed for professional environments requiring strict compliance for United States government projects and facilities. This passive cable features non-booted RJ-45 male connectors and utilizes stranded copper conductors with a 24 AWG wire gauge. Built to meet or exceed ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards, it supports high-performance applications including 1000BASE-T Gigabit Ethernet. The cable is constructed with high-quality, made in the USA raw cable, offering an enhanced 600 MHz maximum frequency for reliable signal integrity. Each connector is equipped with 50-micron gold-plated contacts to maintain consistent connections. The white PVC jacket is CMR (Riser) rated for safe installation in vertical shaft applications. This cable is an ideal solution for connecting network adapters, hubs, switches, routers, and servers in managed infrastructure environments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 4 ft (1.2 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 0.12 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Non-Booted |
| Color | White |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120436874 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
48-Port Cat6 110-Type Patch Panel
CG37200$327.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Screw-On Cover
EN4200$189.99
20 Inch Enclosure with Hinged Door
EN2050$149.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
Questions about this part
Is the C2G43687 TAA compliant for government contracts?
Yes, this C2G43687 cable meets TAA compliant requirements, making it approved for use in United States government projects and facilities.
What is the maximum frequency and speed support for this Cat6 cable?
This Cat6 cable supports a 600 MHz maximum frequency and meets ANSI/TIA-568.2-D standards for applications including 1000BASE-T (1 Gigabit Ethernet).
What kind of jacket rating does this cable have?
The C2G43687 features a PVC jacket with a CMR (Riser) rating, suitable for use in vertical shaft applications.
What connectors are used on the C2G43687?
This cable is a non-booted design utilizing standard RJ-45 male connectors on both ends with 50-micron gold-plated contacts.
Can I use this cable in a patch panel or wall plate?
This cable is compatible with various Legrand AV components, such as the CG37200 48-Port Cat6 110-Type Patch Panel or the CG37094 Two Port Keystone Wall Plate.
