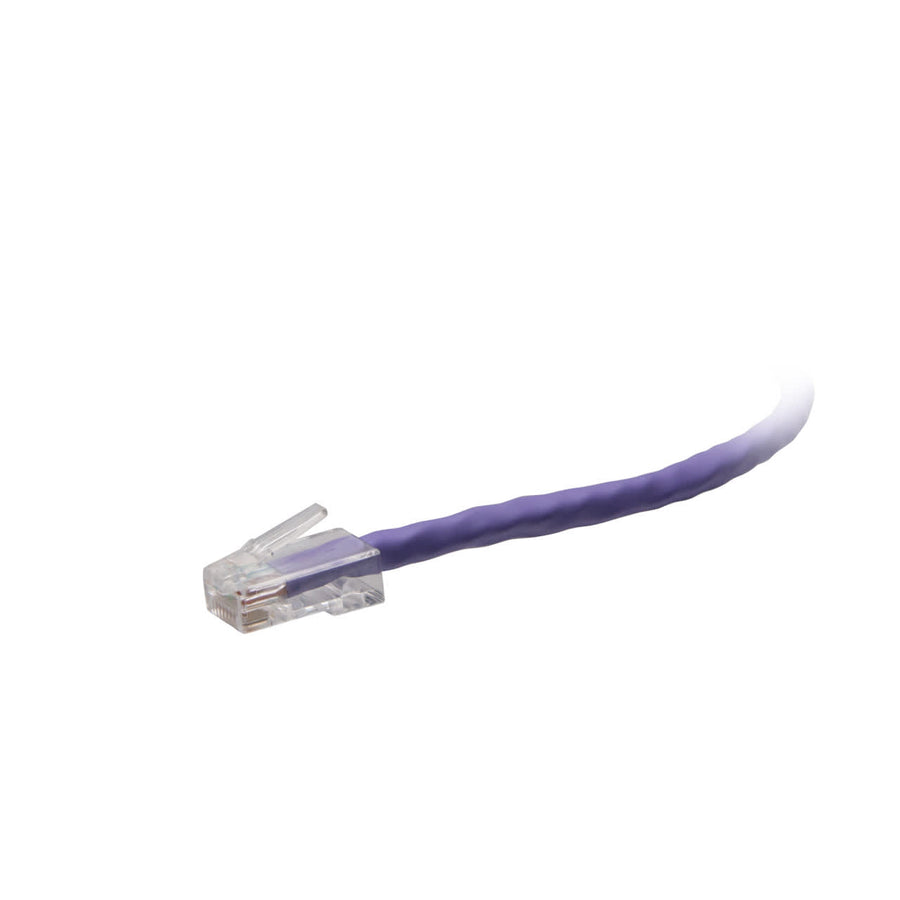

4ft (1.2m) TAA-Compliant F-Series Cat6 Non-Booted Unshielded (UTP) Network Cable - Purple
4ft TAA-compliant Cat6 UTP network cable in purple, featuring 24 AWG stranded copper conductors and RJ-45 male connectors
The C2G43675 is a 4ft (1.2m) TAA-compliant F-Series Cat6 network cable designed to meet the stringent requirements of United States government projects and facilities. This unshielded (UTP) cable is built for high-performance connectivity between network adapters, switches, routers, hubs, and servers. It is constructed with high-quality, made-in-the-USA stranded copper conductors and features 50-micron gold-plated contacts to maintain signal integrity. This cable is rated CMR for riser applications and supports 1000BASE-T (1 Gigabit Ethernet) by meeting or exceeding ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards. With a 0.22 in (5.6 mm) cable diameter and a purple PVC jacket, it provides an easy way to color-code complex network installations. This passive cable operates within a temperature range of -4° to 167°F (-20° to 75°C).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 4 ft (1.2 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 0.12 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Non-Booted |
| Color | Purple |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120436751 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
48-Port Cat6 110-Type Patch Panel
CG37200$327.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
Questions about this part
Is the C2G43675 TAA compliant?
Yes, the C2G43675 is TAA compliant and is approved for use in United States government projects and facilities.
What is the maximum frequency and speed of this Cat6 cable?
This Cat6 cable is designed with an enhanced 600 MHz maximum frequency and supports 1000BASE-T (1 Gigabit Ethernet) applications.
What type of jacket rating does the C2G43675 have?
This cable features a CMR rated PVC jacket, making it suitable for riser applications.
What accessories are compatible with this cable type?
This cable can be used in conjunction with various enclosures such as the EN4250 or EN1400, as well as patch panels like the CG37199 or CG37200.
What is the wiring scheme for this network cable?
The C2G43675 uses the T568B wiring scheme with RJ-45 male connectors on both ends.
