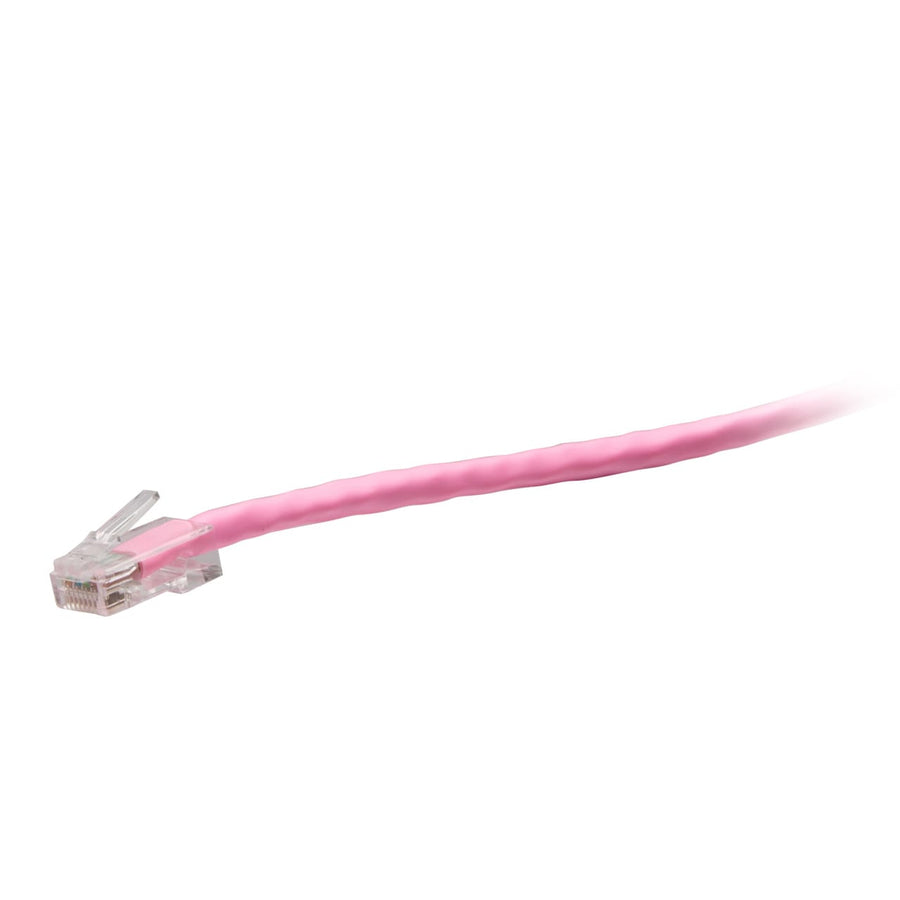

4ft (1.2m) TAA-Compliant F-Series Cat6 Non-Booted Unshielded (UTP) Network Cable - Pink
4ft TAA-compliant Pink Cat6 UTP network cable with RJ-45 male connectors and CMR riser-rated jacket
The C2G43699 is a 4 ft (1.2 m) TAA-compliant Cat6 network cable designed for critical infrastructure and government projects requiring strict compliance. This unshielded twisted pair (UTP) cable is constructed with high-quality, made in the USA stranded copper conductors, providing a 600 MHz maximum frequency for reliable performance. The cable features standard RJ-45 male connectors with 50-micron gold-plated contacts to ensure high signal integrity for 1000BASE-T Gigabit Ethernet applications. As a non-booted, CMR-rated cable, it is suitable for riser applications where fire safety standards must be met. This pink cable is part of the F-Series and is an ideal solution for connecting network adapters, hubs, switches, routers, and servers. Its TAA compliance makes it suitable for use in United States government facilities. This passive cable utilizes a T568B wiring scheme and features a 0.22 in (5.6 mm) diameter PVC jacket, operating reliably in environments ranging from -4° to 167°F (-20° to 75°C).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 4 ft (1.2 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 0.12 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Non-Booted |
| Color | Pink |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120436997 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
48-Port Cat6 110-Type Patch Panel
CG37200$327.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
Questions about this part
Is the C2G43699 TAA compliant for government use?
Yes, this is a TAA-compliant F-Series cable, making it approved for use in United States government projects and facilities.
Can I use this cable for Gigabit Ethernet applications?
Yes, this Cat6 cable meets or exceeds ANSI/TIA-568.2-D standards to support 1000BASE-T (1 Gigabit Ethernet) applications.
What is the temperature rating for the C2G43699?
This cable is designed to operate in temperatures ranging from -4°F to 167°F (-20°C to 75°C).
What is the difference between the jacket rating and application for this SKU?
This cable features a PVC jacket material with a CMR rating and is specified for Riser applications.
What accessories are compatible with this cable series?
This cable can be used in conjunction with various enclosures like the EN4250, or integrated into systems using the CG37199 24-Port Cat6 Patch Panel.
