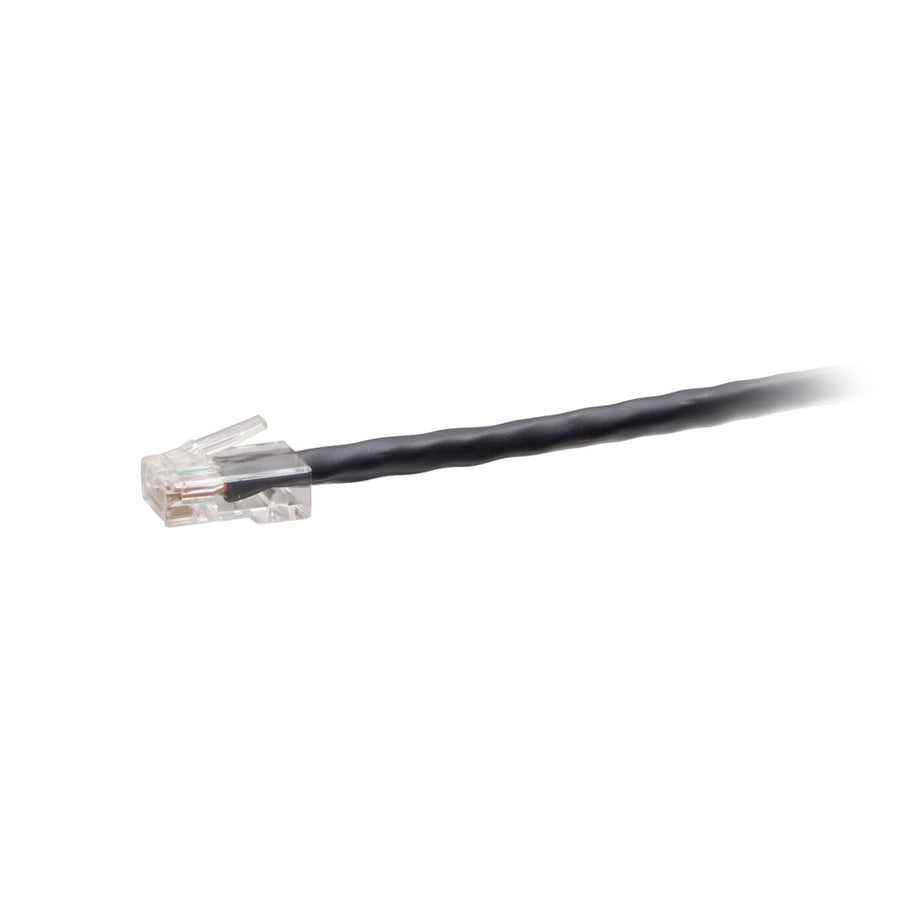

4ft (1.2m) TAA-Compliant F-Series Cat6 Non-Booted Unshielded (UTP) Network Cable - Black
4ft TAA-compliant Cat6 unshielded UTP network cable with 50-micron gold-plated contacts and CMR rated PVC jacket
The C2G43627 is a 4 ft (1.2 m) TAA-compliant F-Series Cat6 unshielded (UTP) network cable designed to meet the rigorous requirements of United States government projects and facilities. This passive networking cable is constructed with high-quality, made in the USA copper cabling, featuring stranded 24 AWG conductors. It is engineered for high-performance applications, providing an enhanced 600 MHz maximum frequency to exceed standard Cat6 capabilities and support 1000BASE-T (1 Gigabit Ethernet) environments. The cable utilizes a T568B wiring scheme and features non-booted RJ-45 male connectors with 50-micron gold-plated contacts to ensure superior signal integrity. This CMR-rated cable features a PVC jacket suitable for riser applications and is rated for operating temperatures ranging from -4°F to 167°F (-20°C to 75°C). This black, 0.22 in (5.6 mm) diameter cable is a reliable solution for connecting network adapters, hubs, switches, and routers in secure environments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 4 ft (1.2 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 0.12 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Non-Booted |
| Color | Black |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120436270 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
48-Port Cat6 110-Type Patch Panel
CG37200$327.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
Questions about this part
Is the C2G43627 TAA compliant?
Yes, this cable meets TAA compliant requirements for use in United States government projects and facilities.
Can I use the C2G43627 in a vertical riser application?
Yes, this cable features a CMR (Riser) rated PVC jacket, making it suitable for riser applications.
What is the maximum frequency and speed of this Cat6 cable?
This cable supports an enhanced 600 MHz maximum frequency and is designed to support 1000BASE-T (1 Gigabit Ethernet) applications.
What is the wiring scheme for the RJ-45 connectors?
The C2G43627 is configured with a T568B wiring scheme on its two RJ-45 male connectors.
What other lengths and colors are available in this series?
The F-Series is available in various colors including Blue, Gray, Green, Orange, Pink, Purple, and Red, with lengths available up to 25ft.
