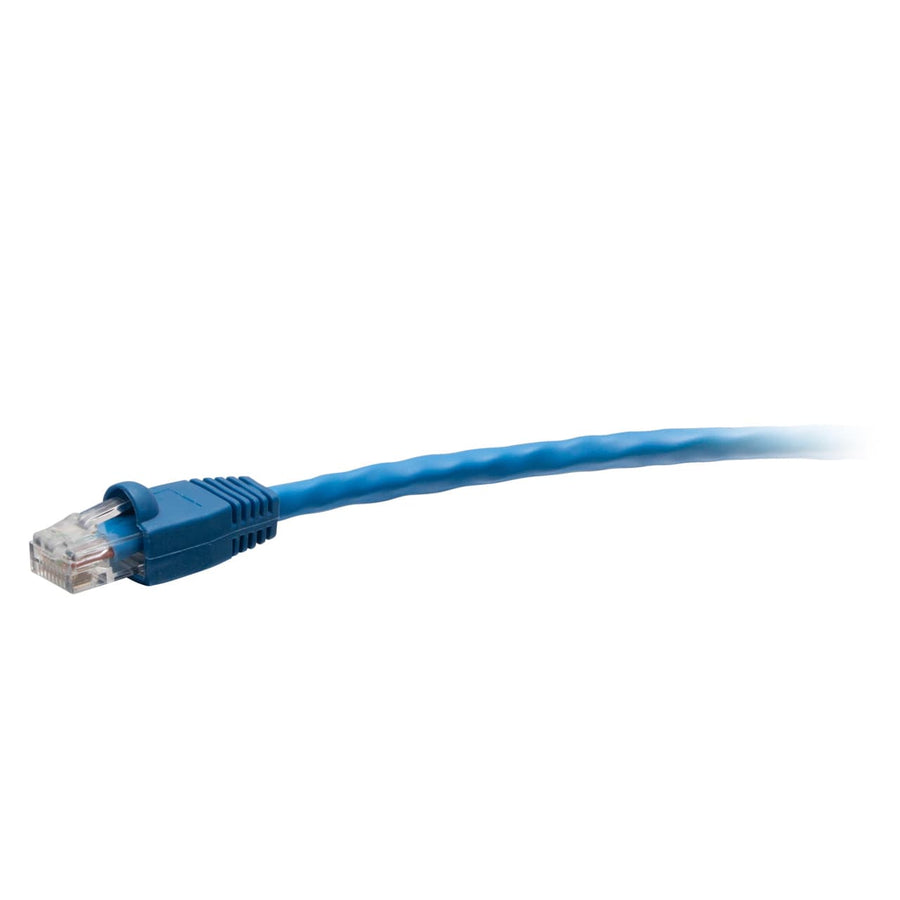

4ft (1.2m) TAA-Compliant F-Series Cat5e Snagless Unshielded (UTP) Network Cable - Blue
4ft Blue Cat5e Snagless UTP network cable, TAA-compliant, with stranded copper conductors and 50-micron gold-plated contacts
The C2G43411 is a 4ft (1.2 m) TAA-compliant Cat5e Snagless Unshielded (UTP) network cable, specifically engineered for use in United States government projects and facilities. This passive cable features stranded copper conductors and a 24 AWG wire gauge, supporting 1000BASE-T (1 Gigabit Ethernet) applications. The blue PVC jacket is CMR rated (Riser) for safe installation in vertical shafts. For enhanced signal integrity, the RJ-45 male connectors feature 50-micron gold-plated contacts. A molded, snagless boot is integrated into the design to protect the clips from snapping during high-cycle insertion and to provide additional strain relief. This cable meets or exceeds ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards, making it a reliable choice for connecting network adapters, hubs, switches, routers, and servers. The cable operates effectively within an operating temperature range of -4° to 167°F (-20° to 75°C).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.5 mm) |
| Cable Length | 4 ft (1.2 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 0.08 lbs (0 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Snagless |
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120434115 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
48-Port Cat6 110-Type Patch Panel
CG37200$327.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
9 Inch Dual-Purpose In-Wall Enclosure
ENP0900NA$39.99
17 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP1705NAV1$69.99
Questions about this part
Is the C2G43411 TAA compliant?
Yes, this cable is TAA compliant and approved for use in United States government projects and facilities.
What is the maximum performance rating for this Cat5e cable?
This cable supports 1000BASE-T (1 Gigabit Ethernet) and features an enhanced 350 MHz maximum frequency.
What type of jacket is used on this blue cable?
The cable features a blue PVC jacket that is CMR (Riser) rated for vertical installation.
Will this cable work in high-traffic network environments?
Yes, the snagless RJ45 design is built to protect the clips from being snapped off during frequent insertion cycles.
What is the conductor material for the C2G43411?
It is constructed with high-quality, made in the USA stranded copper conductors.
