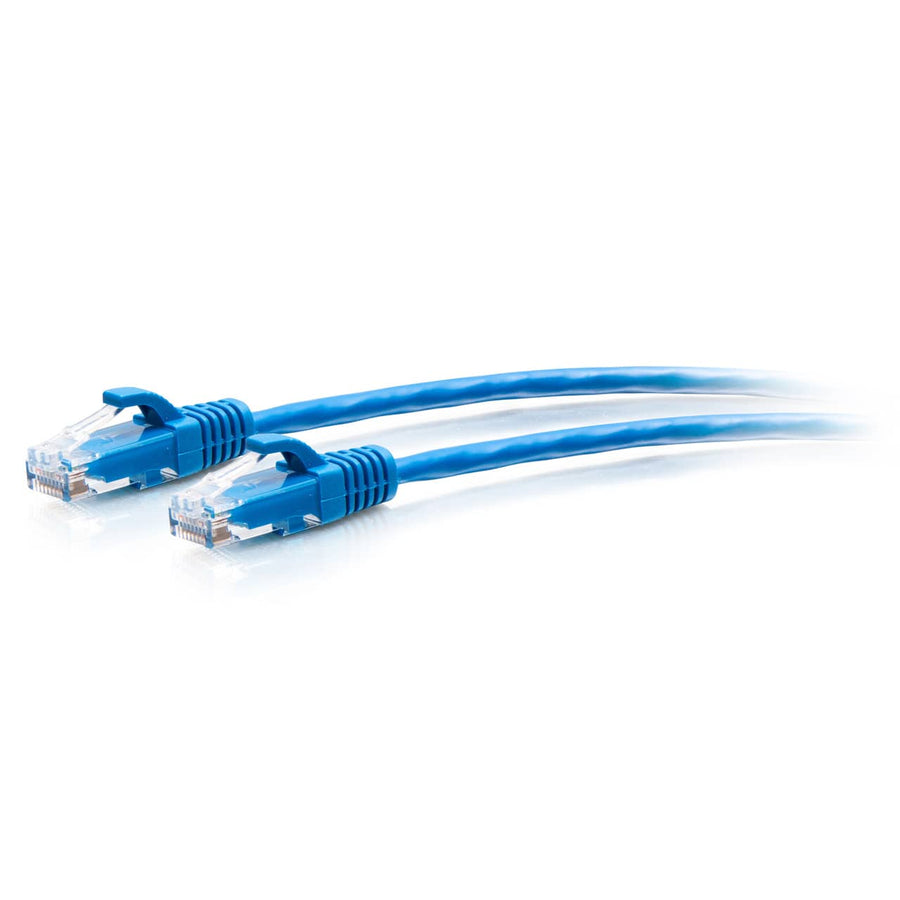

4ft (1.2m) Cat6a Snagless Unshielded (UTP) Slim Ethernet Patch Cable - Blue
4ft Blue Cat6a slim patch cable with 28AWG conductors, 10 Gbps data transfer, and snagless boots for high-density environments
The C2G30128 is a 4ft (1.2 m) Cat6a Snagless Unshielded (UTP) Slim Ethernet Patch Cable designed for high-density cabling environments such as datacenters and large conference rooms. Featuring 28AWG stranded copper conductors, this slim cable has a diameter of 0.19 in (4.8 mm), providing increased airflow and greater flexibility in tight spaces compared to standard Cat6 cables. This Cat6a technology supports data transfer rates of 10 GBPS and is suitable for Power over Ethernet (PoE) and VoIP applications. Each cable features RJ-45 male connectors with gold-plated contacts and a molded, snagless PVC hood to prevent accidental snags and provide strain relief during installation. This unshielded UTP cable meets ANSI/TIA-568.2-D and ISO/IEC 11801-1 electrical performance requirements and is compliant with NDAA 889, RoHS, and REACH standards. The blue jacket material is PVC, and the product is backed by a lifetime warranty.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.19 in (4.8 mm) |
| Cable Length | 4 ft (1.2 m) |
| Shield Type | UTP |
| Shipping Weight | 0.17 lbs (0.1 kg) |
| Wire Gauge | 28 |
| Cable Shielding | Unshielded UTP Slim |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 14
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSlimSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120301288 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 10 GBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
Questions about this part
What is the maximum data rate for the C2G30128?
The C2G30128 supports data transfer rates of up to 10 GBPS.
Is this cable suitable for high-density datacenters?
Yes, the 28AWG slim construction and 0.19 in (4.8 mm) diameter are designed to increase airflow and flexibility in high-density installations.
Does this cable support Power over Ethernet (PoE)?
Yes, this Cat6a cable is suitable for Power over Ethernet (PoE) and Voice over Internet Protocol (VoIP) environments.
What is the connector type on this patch cable?
The C2G30128 features RJ-45 male connectors with snagless, booted PVC hoods and gold-plated contacts.
Is this cable compliant with NDAA 889?
Yes, the C2G30128 is listed as NDAA 889 compliant and meets REACH and RoHS standards.
