4ft (1.2m) Cat6 Non-Booted Unshielded UTP Ethernet Network Patch Cable - Green
4ft Cat6 UTP Ethernet patch cable, green, 24 AWG stranded copper, non-booted RJ-45 connectors

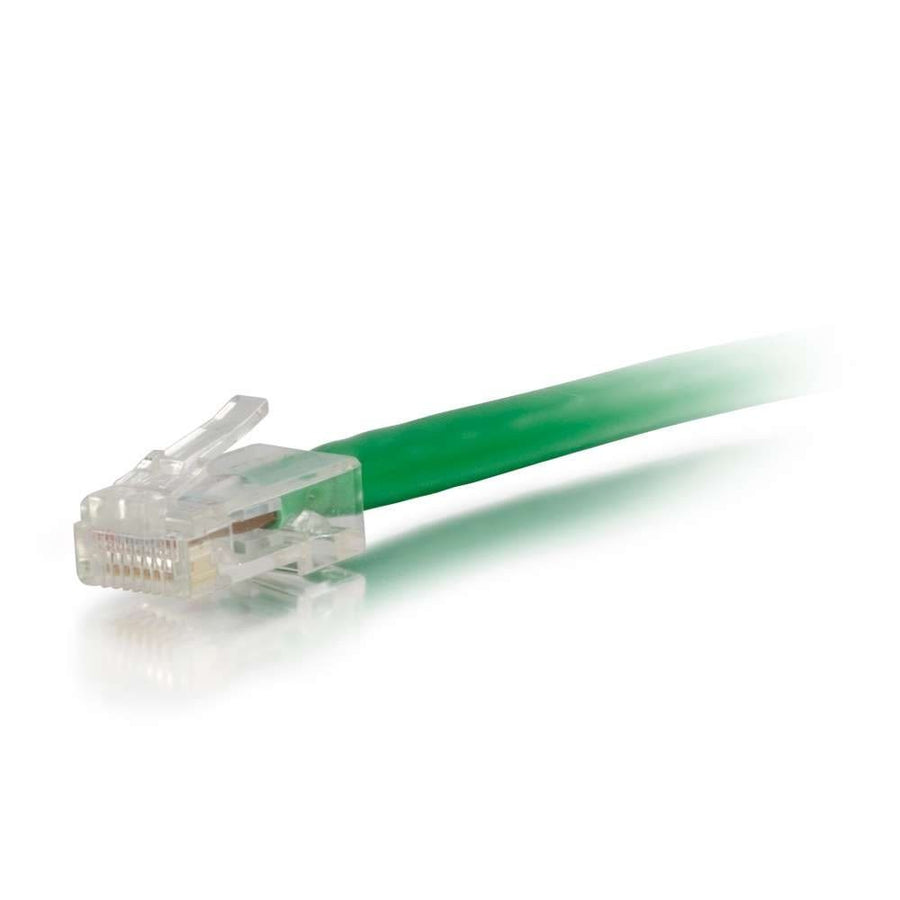

The C2G CG04130 is a 4 ft (1.2 m) Cat6 Unshielded UTP Ethernet patch cable designed for high-bandwidth Gigabit computer networks. This cable is engineered for voice, data, or video distribution applications that demand reliable performance. It features 24 AWG stranded copper conductors and utilizes a T568B wiring scheme to ensure standard compatibility. The cable construction includes individual pairs that are bonded together to maintain twist-spacing throughout the line up to the termination point, which helps minimize Near-End Crosstalk (NEXT) levels and reduces structural return loss (SRL). With a cable diameter of 0.24 in (6 mm) and a PVC jacket, this non-booted cable is suitable for various network environments. This green cable allows for easy color-coding within a larger installation. It carries a lifetime warranty and meets TIA/EIA standards for Cat6 performance.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 4 ft (1.2 m) |
| Shield Type | UTP |
| Shipping Weight | 0.12 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | Green |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Type | Non-booted |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120041306 |
| Certifications | CENDAA 889NDAA 889Prop 65Prop 65REACHREACHRoHSRoHSTSCATSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Questions about this part
What is the maximum temperature rating for this cable?
The CG04130 has a temperature rating of up to 75°C.
Is this cable suitable for high-speed Gigabit networks?
Yes, the CG04130 is a Cat6 rated cable designed for bandwidth-intensive voice, data, or video distribution applications.
What is the wiring configuration for the RJ-45 connectors?
This patch cable uses the T568B wiring scheme on both ends.
Does this cable have shielding?
No, the CG04130 is an Unshielded (UTP) cable with a standard PVC jacket.
What are the electrical specifications for this Cat6 cable?
The cable features a 100 ohm impedance, 5600pf/100m capacitance, and a maximum propagation delay of 545ns/100m.
