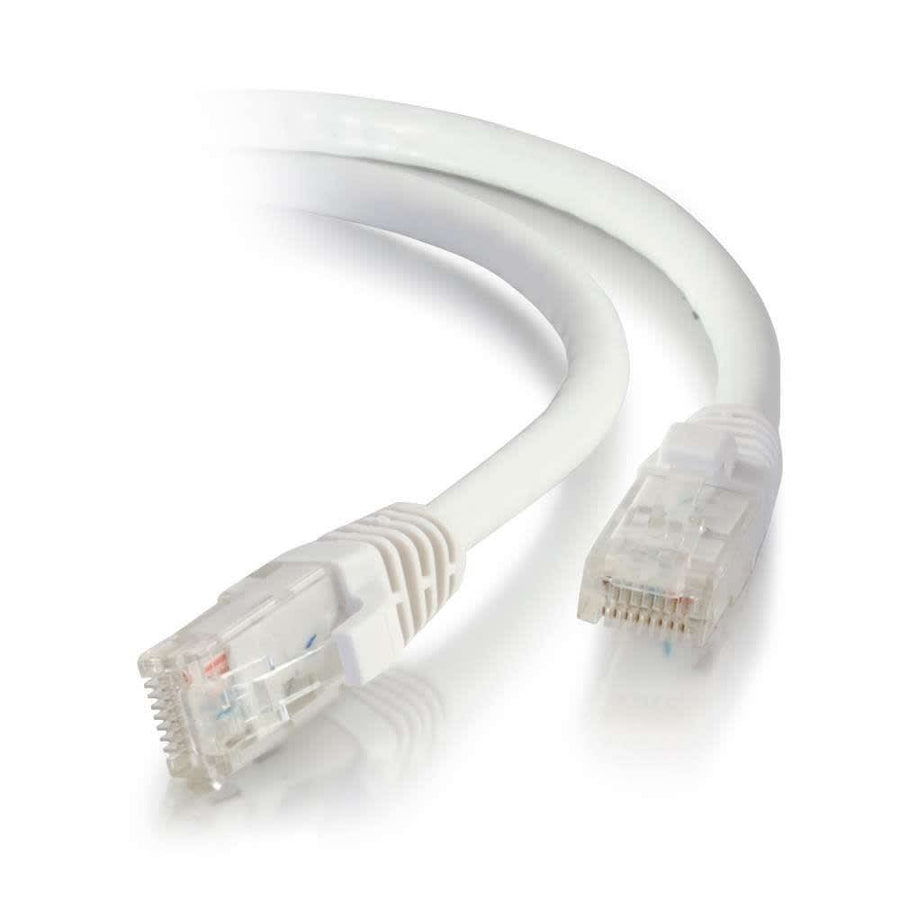

4ft (1.2m) Cat5e Snagless Unshielded UTP Ethernet Network Patch Cable - White
4ft Cat5e Snagless Unshielded UTP Ethernet Patch Cable in White, featuring copper conductors and T568B wiring scheme
The CG00483 is a 4ft (1.2m) Cat5e Snagless Unshielded UTP Ethernet Network Patch Cable designed for bandwidth-intensive voice, data, or video distribution applications. This cable utilizes a stranded copper conductor with a 24 AWG wire gauge to minimize Near-End Crosstalk (NEXT) levels. It is engineered to meet all Cat5e TIA/EIA standards, significantly reducing structural return loss (SRL) and impedance. The construction includes bonded individual pairs to maintain consistent twist-spacing from the cable through to the termination point. For installation reliability, the RJ-45 male connectors feature a molded, snagless PVC boot that protects the clips and provides additional strain relief during patching. This white cable follows a T568B wiring scheme and has a 0.21 in (5.3 mm) cable diameter. It is compliant with RoHS, REACH, CE, TAA, NDAA 889, Prop 65, and TSCA standards.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bandwidth | 350 mHz |
| Cable Diameter | 0.21 in (5.3 mm) |
| Cable Length | 4 ft (1.2 m) |
| Shield Type | UTP |
| Shipping Weight | 0.11 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
All other specifications 15
| Cable Type | Cat5e |
| Category Performance Application | Cat5e |
| Color | White |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120004837 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
Questions about this part
What is the maximum length available for this Cat5e series?
While this specific SKU is 4ft (1.2m), the series is available in lengths up to 150ft.
Is this cable suitable for high-bandwidth video distribution?
Yes, this Cat5e cable is designed for bandwidth-intensive applications including voice, data, and video distribution.
What wiring standard does the CG00483 use?
The CG00483 uses the T568B wiring scheme and features RJ-45 male connectors on both ends.
How does the snagless design benefit installation?
The molded snagless boot protects the connector clips from snapping and provides extra strain relief during installation and frequent unplugging.
Does this cable meet NDAA compliance?
Yes, this product is listed as NDAA 889 compliant in its specifications.
