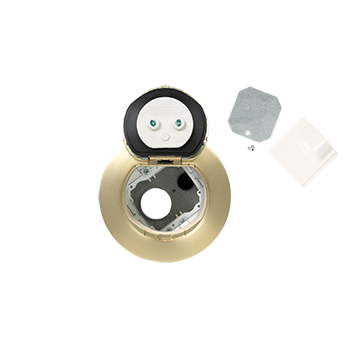

4ATSB 4 inch Unwired Flush Syle Assembly in Satin Brass
4-inch recessed poke-thru assembly in Satin Brass, providing 2-gang capacity for power, data, and AV services below floor level
The 4ATSB is a 4-inch recessed poke-thru assembly from the Wiremold Evolution Series, designed for both new construction and retrofit applications. This unwired assembly provides a 2-gang capacity, allowing installers to configure specific power, communications, and audio/video services to meet the needs of the space. The flush-style cover features a Satin Brass finish, part of a series of low-profile metal covers available in multiple powder-coated and brushed finishes. Because the devices are recessed below the floor level, they offer maximum protection for the connected equipment. This assembly is UL Listed and UL fire classified to U.S. and Canadian safety standards, utilizing intumescent material to maintain the floor's fire rating for up to 2 hours.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Dimensions | 21" x 8.25" x 8.25" (533.4 x 209.6 x 209.6 mm) |
| Color | Satin Brass |
| Cover Style | Flush |
| Number of Duplex | 0 |
| Prewired | No |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
Resources
Questions about this part
What is the capacity of the 4ATSB assembly?
The 4ATSB provides a 2-gang capacity, allowing you to configure a variety of power, communication, and audio/video services.
Is the 4ATSB prewired or unwired?
The 4ATSB is an unwired assembly, meaning you will need to install your own devices and cabling to complete the setup.
How does the cover design work for safety?
The unique cover design opens a full 180 degrees and features two spring-loaded slide egress doors to protect wires and connections.
Does this poke-thru maintain a fire rating?
Yes, this assembly uses intumescent material that maintains the fire rating of the floor for up to 2 hours.
What certifications does the 4ATSB have?
This unit is cULus certified and is UL fire classified to U.S. and Canadian safety standards.
