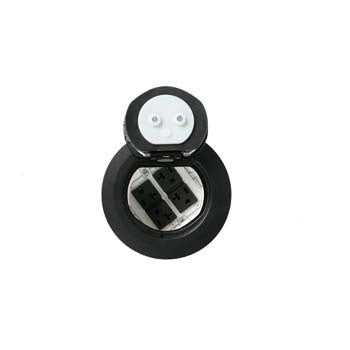

4ATP4RBK 4 inch Prewired Flush Syle 4 Receptacle in Black
4-inch recessed poke-thru device with prewired 2-gang duplex receptacles and a black flush-style cover
The Wiremold 4ATP4RBK is a 4-inch Evolution Series 4" Recessed Poke-Thru device designed for both new construction and retrofit applications. This prewired assembly arrives with every power receptacle already installed, allowing installers to save significant labor time on the job site. Featuring a flush cover style, the unit provides recessed access to power, communications, and audio/video services below floor level for maximum device protection. This 2-gang capacity unit is ideal for high-traffic environments such as training rooms, classrooms, healthcare facilities, or kiosks. The black finish and unique 180-degree opening cover utilize two spring-loaded slide egress doors to protect internal connections and wiring from users. Additionally, the intumescent material used in the device maintains a 2-hour fire rating for the floor.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Dimensions | 21" x 8.25" x 8.25" (533.4 x 209.6 x 209.6 mm) |
| Color | Black |
| Cover Style | Flush |
| Number of Duplex | 2 |
| Prewired | Yes |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
Resources
Questions about this part
Does the 4ATP4RBK require a second installer for installation?
No, this Evolution Series device features a step-on-it installation design that allows for quick setup without the need for a second person.
What is the fire rating for this poke-thru device?
The 4ATP4RBK is UL fire classified to maintain a 2-hour fire rating for the floor through the use of intumescent material.
How many receptacles are included in this prewired assembly?
This SKU is a 2-gang capacity device that comes with 2 duplex receptacles already installed.
What are the service options for the 4ATP4RBK?
The recessed design provides access to power, communications, and audio/video services for open-space architecture or kiosks.
What is the difference between the 4ATP4RBK and other Evolution Series models?
This specific model is the black, flush-style version with 2 duplex receptacles; other variants in the series offer different powder-coated finishes like brushed aluminum or satin nickel.
