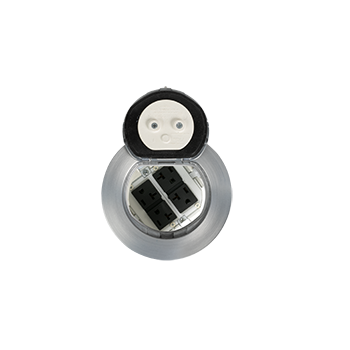

4ATP4RAA 4 inch Prewired Flush Syle 4 Receptacle in Brushed Aluminum
4-inch recessed poke-thru device with 2 duplex receptacles and a prewired, brushed aluminum flush cover
The Wiremold 4ATP4RAA is a 4-inch Evolution Series poke-thru designed to provide recessed access to power and communications in open-space environments. This prewired assembly arrives with the power receptacles already installed, which reduces onsite labor requirements during installation. Featuring a flush-style cover in a brushed aluminum finish, this device is suitable for kiosks, training rooms, and healthcare facilities. The unit utilizes an intumescent material that maintains the 2-hour fire rating of the floor. To protect cables and users, the cover opens 180 degrees using two spring-loaded, slide egress doors. Because the devices are recessed below the floor level, they offer maximum protection for the connections from foot traffic and debris.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Dimensions | 21" x 8.25" x 8.25" (533.4 x 209.6 x 209.6 mm) |
| Color | Brushed Aluminum |
| Cover Style | Flush |
| Number of Duplex | 2 |
| Prewired | Yes |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
Resources
Questions about this part
Does the 4ATP4RAA require field wiring?
No, this is a prewired assembly that comes with the power receptacles already installed to save time on the job site.
How does this unit protect the floor's fire rating?
The Evolution Series uses intumescent material that maintains the existing 2-hour fire rating of the floor.
What is the finish of this specific model?
This SKU features a brushed aluminum flush-style cover.
Is this unit UL listed?
Yes, this device is UL Listed and UL fire classified to both U.S. and Canadian safety standards.
What is the capacity of this poke-thru?
This 4-inch device provides capacity for 2 duplex receptacles.
