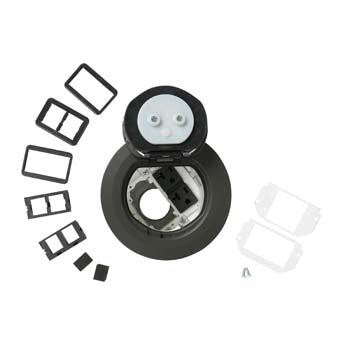

4ATP2RGY 4 inch Prewired Flush Syle Duplex in Gray
Recessed 4 inch poke-thru device with prewired duplex receptacle and gray flush-style cover
The Wiremold 4ATP2RGY is a 4-inch Evolution Series Poke-Thru device designed for recessed installation in both new construction and retrofit applications. This unit features a prewired assembly, which reduces on-site labor because the power receptacle is already installed prior to delivery. The duplex receptacle is recessed below floor level to ensure maximum protection for the device and the connections. For safety, the cover design features two spring-loaded slide egress doors that allow the cover to open a full 180 degrees. This model is UL Listed and UL fire classified, utilizing an intumescent material that maintains a 2-hour fire rating for the floor. The gray flush-style cover is intended for use in environments such as classrooms, training rooms, kiosks, healthcare facilities, and commercial buildings with open-space architecture.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Dimensions | 21" x 8.25" x 8.25" (533.4 x 209.6 x 209.6 mm) |
| Color | Gray |
| Cover Style | Flush |
| Number of Duplex | 1 |
| Prewired | Yes |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
Resources
Questions about this part
Will the 4ATP2RGY maintain my floor's fire rating?
Yes, the intumescent material used in this device maintains a 2-hour fire rating for the floor, and it is UL fire classified to U.S. and Canadian standards.
Does the 4ATP2RGY come with the power receptacle installed?
Yes, this is a prewired assembly, meaning the power receptacle is already installed to help save labor during installation.
What is the cover style for this 4 inch poke-thru?
The 4ATP2RGY features a flush-style cover with two spring-loaded slide egress doors that open 180 degrees.
Is the 4ATP2RGY suitable for commercial open-space architecture?
Yes, these recessed devices are designed for use in commercial buildings, training rooms, classrooms, and healthcare facilities.
What is the warranty for the 4ATP2RGY?
This product is backed by a warranty of 1 year from installation or 2 years from the date of sale.
