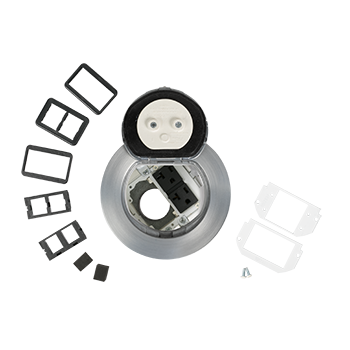

4ATP2RAA 4 inch Prewired Flush Syle Duplex in Brushed Aluminum
Recessed 4 inch prewired poke-thru device with 1 duplex receptacle and brushed aluminum flush cover
The Wiremold 4ATP2RAA is a prewired Evolution Series 4-inch recessed poke-thru device designed for both new construction and retrofit applications. This unit features a flush style cover with a brushed aluminum finish, making it suitable for integration into kiosks, classrooms, or healthcare facilities with open-space architecture. Because this is a prewired assembly, the power receptacle is already installed, which significantly reduces on-site labor requirements. The recessed design ensures that all power devices sit below the floor level to provide maximum protection. For safety, the cover design includes two spring-loaded slide egress doors that open 180 degrees to protect wires and connections. Additionally, the device uses intumescent material to maintain the 2-hour fire rating of the floor.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Dimensions | 21" x 8.25" x 8.25" (533.4 x 209.6 x 209.6 mm) |
| Color | Brushed Aluminum |
| Cover Style | Flush |
| Number of Duplex | 1 |
| Prewired | Yes |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
Resources
Questions about this part
Will this poke-thru maintain my floor's fire rating?
Yes, the Evolution Series uses intumescent material that maintains a 2-hour fire rating for the floor.
What is the primary benefit of the prewired 4ATP2RAA assembly?
The prewired design allows for faster installation by providing the power receptacle already installed within the unit.
How does the cover mechanism work for safety?
The cover features two unique spring-loaded slide egress doors that allow the cover to open a full 180 degrees.
Is this device suitable for commercial or healthcare environments?
Yes, it is designed for use in training rooms, classrooms, kiosks, and healthcare facilities with open-space architecture.
Does this product require a second installer for setup?
The design allows for a quick 'step-on-it' installation that does not require a second installer or additional fasteners.
