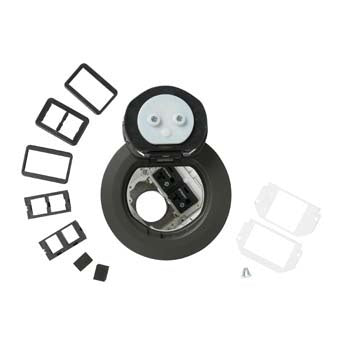

4ATP2CRGY 4 inch Prewired Flush Syle Duplex in Gray
Prewired 4 inch recessed poke-thru device featuring a single gray duplex receptacle and a 180-degree flush cover.
The 4ATP2CRGY is a 4 inch Evolution Series Poke-Thru Device designed for both new construction and retrofit applications. This recessed unit features a prewired assembly, which helps reduce on-site labor since the power receptacle is already installed. It is configured with 1 duplex receptacle and utilizes a flush style cover. To maintain the integrity of the floor, the cover opens 180 degrees via two spring-loaded slide egress doors that keep connections and personnel safe. This device is UL Listed and UL fire classified to U.S. and Canadian safety standards, utilizing an intumescent material to maintain a 2-hour fire rating for the floor. This gray model is suitable for use in kiosks, classrooms, training rooms, and healthcare facilities where floor-level access to power is required.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Dimensions | 21" x 8.25" x 8.25" (533.4 x 209.6 x 209.6 mm) |
| Color | Gray |
| Cover Style | Flush |
| Number of Duplex | 1 |
| Prewired | Yes |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
Resources
Questions about this part
Will the 4ATP2CRGY work for a floor retrofit?
Yes, the Evolution Series 4" Poke-Thru is designed for both retrofit and new construction environments.
How much fire rating does this poke-thru provide?
The device uses intumescent material to maintain a 2-hour fire rating for the floor.
Is this device UL listed?
This unit is UL Listed and UL fire classified to U.S. and Canadian safety standards.
Does the cover provide protection for the wires?
The cover opens 180 degrees and features two spring-loaded slide egress doors to keep wires and connections safe.
What is the difference between this and other Evolution Series models?
This specific SKU is a 4 inch gray model with a single duplex receptacle, whereas other versions in the series offer different color finishes.
