4ATP2CRBZ 4 inch Prewired Flush Syle Duplex Cover in Bronze
Prewired 4-inch recessed flush-style duplex cover in a Bronze finish for Evolution Series poke-thru devices

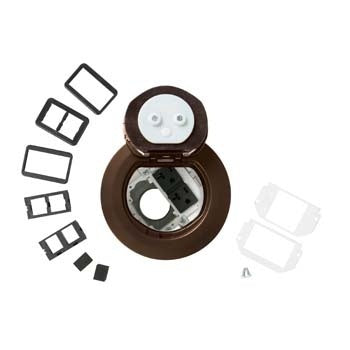

The Wiremold 4ATP2CRBZ is a prewired 4-inch Evolution Series Poke-Thru device designed for both new construction and retrofit applications. This recessed unit features a flush-style cover in a Bronze finish, providing a low-profile solution for accessing power and communication services below the floor level. Because this unit is a prewired assembly, the duplex power receptacle comes already installed, which reduces onsite labor during the installation process. The 4-inch recessed design ensures that all power devices remain below the floor line for maximum device protection and longevity. This specific SKU provides 1 duplex receptacle and is built to maintain the fire rating of the floor for up to 2 hours using intumescent material. The cover utilizes a unique design where two spring-loaded slide egress doors allow the cover to open a full 180 degrees for safe access.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Dimensions | 21" x 8.25" x 8.25" (533.4 x 209.6 x 209.6 mm) |
| Color | Bronze |
| Cover Style | Flush |
| Number of Duplex | 1 |
| Prewired | Yes |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
Resources
Questions about this part
Will this 4ATP2CRBZ fit my Evolution Series poke-thru installation?
Yes, this is a 4-inch Evolution Series device designed for recessed poke-thru applications in open-space environments like training rooms or classrooms.
Is the 4ATP2CRBZ a prewired unit?
Yes, this SKU is a prewired assembly that includes the duplex power receptacle already installed to simplify the installation process.
Does this poke-thru maintain the fire rating of my floor?
Yes, it uses intumescent material that maintains the 2-hour fire rating of the floor for up to 2 hours.
What is the difference between this and other Evolution Series covers?
This 4ATP2CRBZ model features a Bronze finish and a flush-style cover, whereas other variants in the series offer different finishes like Black, Gray, or Nickel.
What certifications does the 4ATP2CRBZ hold?
The device is cULus listed and UL fire classified to both U.S. and Canadian safety standards.
