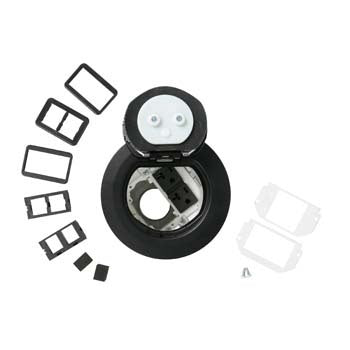

4ATCP2RBK 4AT Prewired Dual Service Evolution™ Poke-Thru Device in Black
Prewired 4'' recessed poke-thru device in black, featuring 2-gang capacity and 2-hour fire rating
The Wiremold 4ATCP2RBK is a prewired Evolution Series 4'' Recessed Poke-Thru device designed for both new construction and retrofit applications. This device provides recessed access to power, communications, and A/V services below floor level, ensuring maximum protection for the installed equipment. Featuring a 2-gang capacity, this unit is configured to accommodate the specific service needs of commercial environments like classrooms, training rooms, or healthcare facilities. The black surface cover features a unique design where the lid opens a full 180 degrees via two spring-loaded, sliding egress doors to keep connections and people safe. This unit includes one prewired duplex receptacle and is an open system that accepts industry-standard devices from most manufacturers, including Extron® and Legrand AVIP. To ensure floor integrity, the device utilizes intumescent material to maintain a 2-hour fire rating.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 18.56 in (47.1 cm) |
| Height | 5.5 in (14 cm) |
| Overall Dimensions | 21" x 8.25" x 8.25" (533.4 x 209.6 x 209.6 mm) |
| Width | 5.5 in (14 cm) |
| Color | Black |
| Cover Style | Surface |
| Number of Duplex | 1 |
| Prewired | Yes |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
Resources
Questions about this part
Will this poke-thru work with my existing devices?
Yes, it is an open system compatible with industry standard power, communications, and A/V devices from most manufacturers, including Extron® and Legrand AVIP.
Does the 4ATCP2RBK meet fire safety requirements?
Yes, this device uses intumescent material that maintains the fire rating of the floor for up to 2 hours.
How do I know if this unit is ADA compliant?
The Evolution Series features a wide trim flange specifically designed to meet ADA Accessibility Guidelines.
What is the installation process like for this prewired unit?
The 'Step-on-it' installation design allows for quick setup without the requirement of a second installer or additional fasteners.
What is the service capacity for this 4-inch device?
This is a 2-gang capacity device that includes one prewired duplex receptacle.
