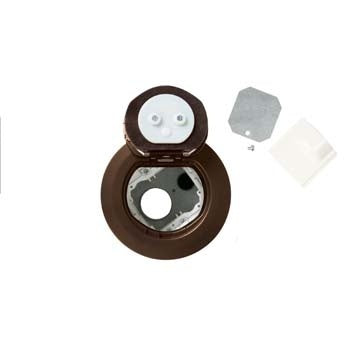

4ATBZ 4 inch Unwired Flush Syle Assembly in Bronze
Unwired 4 inch flush style poke-thru assembly in Bronze for recessed floor access in open-space environments
The 4ATBZ is a 4 inch unwired flush style assembly from the Wiremold Evolution Series 4” Evolution™ Poke-Thru Device line. This recessed solution is designed for both new construction and retrofit applications, providing essential access to power, audio/video, and communication services below the floor level. By keeping devices recessed, the assembly offers maximum protection for the hardware and increased longevity for the connections. This specific SKU features a bronze finish and a flush cover style, making it suitable for professional environments like training rooms, kiosks, classrooms, and healthcare facilities. Because this is an unwired assembly, installers have the flexibility to configure the specific 2-gang capacity to meet the exact service needs of the local space.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Dimensions | 21" x 8.25" x 8.25" (533.4 x 209.6 x 209.6 mm) |
| Color | Bronze |
| Cover Style | Flush |
| Number of Duplex | 0 |
| Prewired | No |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
Resources
Questions about this part
Will the 4ATBZ work in a 2-hour fire rated floor?
Yes, the Evolution Series uses intumescent material that maintains the fire rating of a floor for up to 2 hours and is UL fire classified for up to 2-hour rated floors.
Do I need to purchase a prewired assembly with the 4ATBZ?
The 4ATBZ is an unwired assembly, meaning you will need to provide and install your own power and communication devices to utilize the 2-gang capacity.
What is the difference between the 4ATBZ and other Evolution Series models?
The 4ATBZ is the bronze, flush-style unwired variant; other models in the series offer different powder-coated finishes like brushed aluminum, satin brass, or satin nickel.
Is the cover on the 4ATBZ flush with the floor?
Yes, this SKU features a flush cover style designed to sit level with the floor surface for a low-profile installation.
Which documentation is needed for a project submittal?
Installers can refer to the Evolution Series 4" Poke-Thru Devices PDF or the Evolution Series Sell Sheet for detailed technical information.
