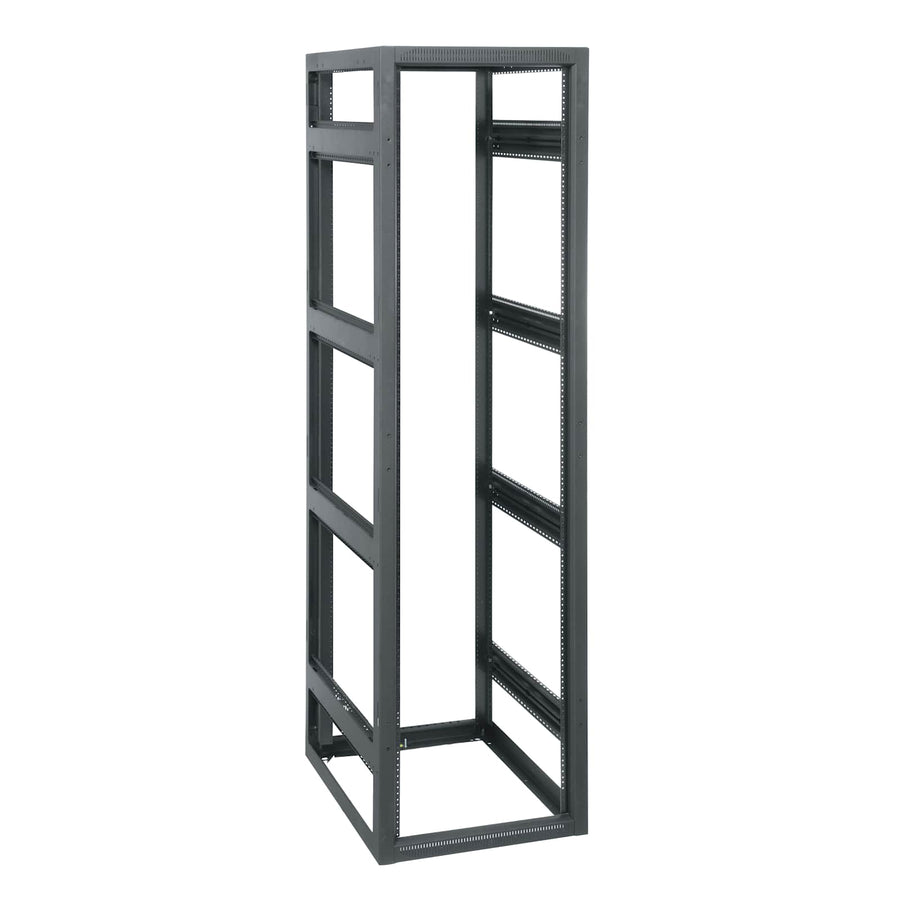

45 RU BGR Series Rack, 27 Inches Deep without Rear Door
45 RU floor standing rack, 27 in (68.6 cm) depth, seismic rated, with Forward Rackrail and Lever Lock compatibility
The Middle Atlantic BGR-4527LRD is a 45 RU floor-standing rack designed for high-performance AV installations. This 27 in (68.6 cm) deep frame features a 23 in (58.4 cm) width, providing extra space in the side channels for front-to-back cable management or mounting small devices using the Lever Lock™ system. This SKU is a frame-only configuration and does not include a rear door, allowing for maximum airflow or custom enclosure options. It is the first Forward Compatible rack, utilizing Forward Rackrail with numbered spaces for efficient setup. The structure is built from steel with a black wrinkle powder coat finish and includes 25mm x 150mm swing handles. With a UL Load Capacity of 3000 lbs (1,360.8 kg) and a Seismic Load Capacity of 1175 lbs (533 kg), this rack provides massive strength for heavy equipment. It is TAA compliant and carries OSHPD Number OPM-0444-13, making it suitable for demanding professional environments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 27 in (68.6 cm) |
| Height | 82.88 in (210.5 cm) |
| Panel Width | 19 in (48.3 cm) |
| Rack Units | 45 RU |
| Shipping Weight | 132 lbs (59.9 kg) |
| UL Load Capacity | 3000 lbs (1,360.8 kg) |
| Usable Depth | 24.4 in (62 cm) |
| Usable Height | 78.88 in (200.4 cm) |
All other specifications 18
| Width | 23 in (58.4 cm) |
| Color | Black |
| Federal Ops Country of Origin | USA |
| Finish | Black Wrinkle Powder Coat |
| Forward Compatible | Yes |
| Gangable | Yes |
| Handles | 25mm x 150mm Swing Handle |
| Material | Steel |
| Product Configuration | Frame Only |
| Rack Rail Type | Forward Rackrail |
| Rear Door | No |
| Seismic Rated | Yes |
| TAA Compliant | YesYes |
| UPC | 656747140204 |
| Certifications | ASCEHCAI (formerly OSHPD)TAAUL Listed |
| OSHPD Number | OPM-0444-13 |
| Patents | www.legrandav.com/patents |
| Seismic Load Capacity | 1175 lbs (533 kg) |
Resources
Questions about this part
This 45 RU rack features a 19 in (48.3 cm) panel width and 24.4 in (62 cm) of usable depth, making it compatible with standard 19-inch rack-mount hardware.
This 45 RU rack features a 19 in (48.3 cm) panel width and 24.4 in (62 cm) of usable depth, making it compatible with standard 19-inch rack-mount hardware.
What is the difference between this rack and the other BGR Series options?
This BGR-4527LRD is a 45 RU, 27 in (68.6 cm) deep frame-only configuration without a rear door, whereas other BGR models vary in RU height and depth.
Is this rack suitable for seismic-prone environments?
Yes, this rack is seismic rated with a Seismic Load Capacity of 1175 lbs (533 kg) and holds HCAI (formerly OSHPD) certification.
What accessories do I need for cable management in this BGR rack?
The Forward Rackrail design is compatible with Lever Lock™ tool-free accessories and side lacing products for internal cabling.
Which documents are available for submittals and technical planning?
You can access the BGR Series A&E Specification Sheet, CAD Technical drawings, Revit Models, and the BGR Series Seismic Certification via the technical documentation links.
