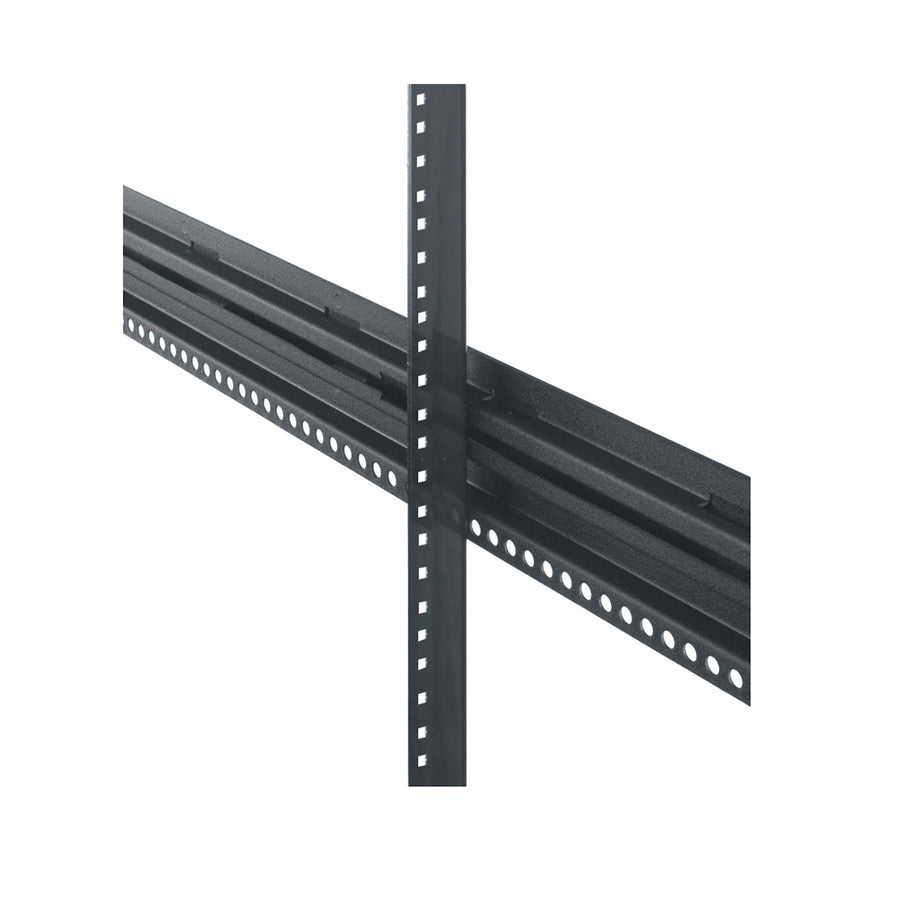

44 RU Rackrail Cage Nut for DRK Series
44 RU cage nut rackrail pair, heavy-gauge 6mm steel with seismic ratings for DRK series racks
The DRK19-RR44PRO is a pair of heavy-gauge 6mm cage nut rackrails designed for use with the Middle Atlantic DRK Series. These rails provide a 44 RU vertical mounting space and feature a 19" standard opening width for professional equipment integration. Finished in Black E-Coat, each rail measures 77 in (195.6 cm) in height, 5.41 in (13.7 cm) in width, and 20 in (50.8 cm) in depth. These rails are seismic rated and carry both ASCE 7-10 and OSHPD 96-967 certifications, making them suitable for environments requiring high structural stability. This SKU is sold as a pair to complete a standard rack installation. For hardware, this rail is compatible with 6mm cage nuts like the CN6MM-100.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 20 in (50.8 cm) |
| Height | 77 in (195.6 cm) |
| Package Count | 1 |
| Rack Units | 44 RU |
| Shipping Weight | 32 lbs (14.5 kg) |
| Usable Height | 77 in (195.6 cm) |
| Width | 5.41 in (13.7 cm) |
| Base Series | DRK |
All other specifications 6
| Finish | Black E-Coat |
| Rack Rail Type | Cage Nut |
| Seismic Rated | Yes |
| UPC | 656747040580 |
| ASCE Number | 7-10 |
| OSHPD Number | 96-967 |
Resources
You'll need these with it
Questions about this part
Does the DRK19-RR44PRO include the cage nuts?
No, this SKU is a pair of rails only. You will need to purchase cage nuts separately, such as the CN6MM-100 6mm cage nuts.
Is this rackrail seismic rated for professional installs?
Yes, these rails are seismic rated and comply with OSHPD 96-967 and ASCE 7-10 standards.
How many rack units does this rail pair cover?
Each rail provides 44 RU of usable height, spanning a total usable height of 77 in (195.6 cm).
What is the width of the DRK19-RR44PRO?
The rail width is 5.41 in (13.7 cm) and it features a 19" standard opening width.
Where can I find technical drawings for submittals?
You can download the DRK Series CAD Technical Specification (dwg) or the Revit Models (rfa) from the resources tab on the product page.
