44 RU MRK Series 22 Inch Wide Pre-Configured Rack, 36 Inches Deep
44 RU seismic-rated floor standing rack, 36" deep, pre-configured for security applications

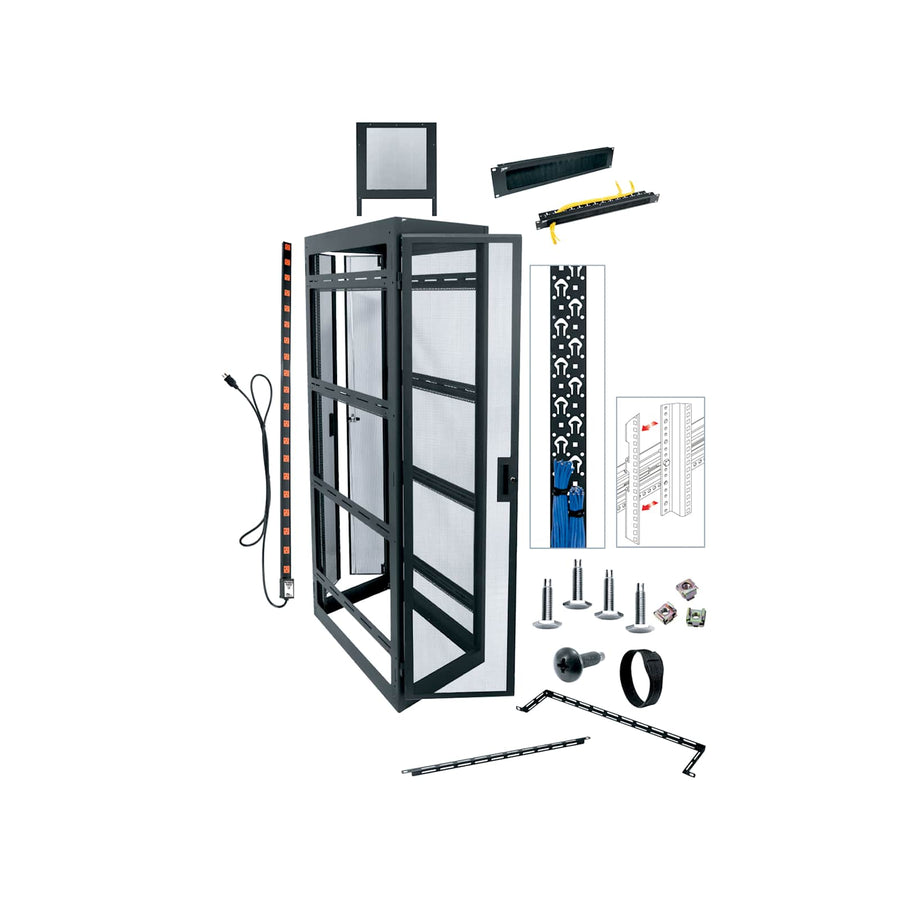

The MRK-4436-NVR-AB is a 44 RU pre-configured security rack designed for high-performance environments where ruggedness is required. This floor-standing enclosure features a 36 in (91.4 cm) depth, providing a usable depth of 33.6 in (85.3 cm) and a usable height of 77.13 in (195.9 cm). Constructed with fully welded seams, this rack is built to withstand heavy loads, with a weight capacity of 10000 lbs (4535.9 kg) and a UL listed load capacity of 2500 lbs (1,134 kg). It is seismic rated per ASCE 7-10 standards, maintaining a seismic load capacity of 1050 lbs (476.3 kg). This specific SKU comes pre-configured for security with a 20A, 20 outlet corded power strip (PDT-2020C-NS) included. The unit features 64% open front and 79% open split rear doors to facilitate airflow and cable management, alongside a 64% open top. Installation is supported by front and rear cage nut rackrails, 100qty 6mm threaded cage nuts, and 50qty 10-32 threaded cage nuts and screws.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 36 in (91.4 cm) |
| Height | 83.13 in (211.2 cm) |
| Panel Width | 19 in (48.3 cm) |
| Rack Units | 44 RU |
| UL Load Capacity | 2500 lbs (1,134 kg) |
| Usable Depth | 33.6 in (85.3 cm) |
| Usable Height | 77.13 in (195.9 cm) |
| Width | 22 in (55.9 cm) |
All other specifications 13
| Federal Ops Country of Origin | USA |
| Gangable | No |
| Product Configuration | Pre-Configured for Security |
| Rack Rail Type | 10-32 |
| Rack Type | Pre-Configured |
| Rear Door | Yes |
| Seismic Rated | Yes |
| Side Panel | No |
| UPC | 656747095283 |
| ASCE Number | 7-10 |
| Certifications | ASCEUL Listed |
| Seismic Load Capacity | 1050 lbs (476.3 kg) |
| Weight Capacity | 10000 lbs (4535.9 kg) |
Resources
Questions about this part
Will the MRK-4436-NVR-AB fit my security equipment?
This rack is pre-configured for security applications and features a 19 in (48.3 cm) panel width. It includes a 33.6 in (85.3 cm) usable depth to accommodate a wide variety of professional hardware.
What is the weight capacity of this rack?
The MRK-4436-NVR-AB has a total weight capacity of 10000 lbs (4535.9 kg), while the UL listed load capacity is rated at 2500 lbs (1,134 kg).
What is included in this pre-configured security package?
This SKU includes a PDT-2020C-NS 20A, 20 outlet corded power strip, front and rear cage nut rackrails, 100qty 6mm threaded cage nuts, 50qty 10-32 threaded cage nuts, and all necessary ganging hardware.
Is this rack suitable for seismic zones?
Yes, this is a seismic rated rack that meets ASCE 7-10 standards, providing a seismic load capacity of 1050 lbs (476.3 kg).
How much airflow does the MRK-4436-NVR-AB provide?
The enclosure is designed for ventilation, featuring a 64% open front door, a 79% open split rear door, and a 64% open top.
