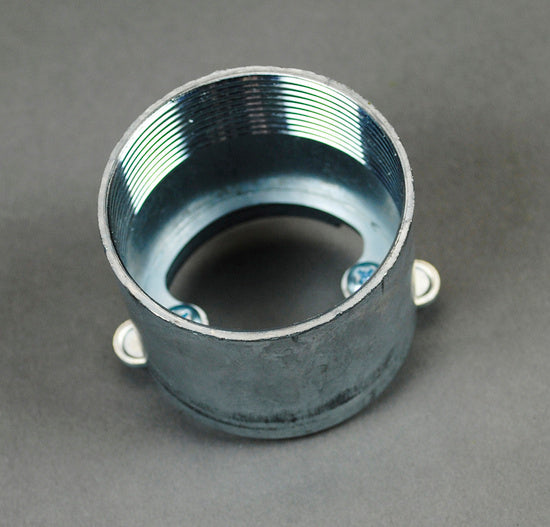

436-2-3 2 51mm IPS Duct Round Afterset
Round afterset service fitting for 3 in (76.2 mm) diameter IPS ducting, used for in-floor cable activation
The Wiremold 436-2-3 is a 2 51mm IPS Duct Round Afterset designed to create cable activation points from existing in-floor ducting. This service fitting is versatile for installers, as it can be installed either before or after a concrete pour. To facilitate installation, a 2 1/2in (64mm) hole must be drilled in the concrete and a 2 1/4in (57mm) hole must be drilled in the duct. This component is TAA compliant and meets RoHS material restrictions. The product carries a warranty of 1-year from installation or 2-years from the day of sale.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Diameter | 3 in (76.2 mm) |
| TAA Compliant | Yes |
| Certifications | TAA |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
Resources
Questions about this part
How do I install the 436-2-3 in concrete?
For a proper installation, drill a 2 1/2in (64mm) hole in the concrete and a 2 1/4in (57mm) hole in the duct.
Can the 436-2-3 be installed after the floor is poured?
Yes, this round afterset is designed to be installed either before or after the concrete pour.
What is the diameter requirement for this afterset?
The 436-2-3 is specified for a 3 in (76.2 mm) diameter duct.
Is this product TAA compliant?
Yes, the 436-2-3 is TAA compliant and meets RoHS material restrictions.
What is the warranty for the 436-2-3?
The product includes a warranty of 1-year from installation or 2-years from the date of sale.
