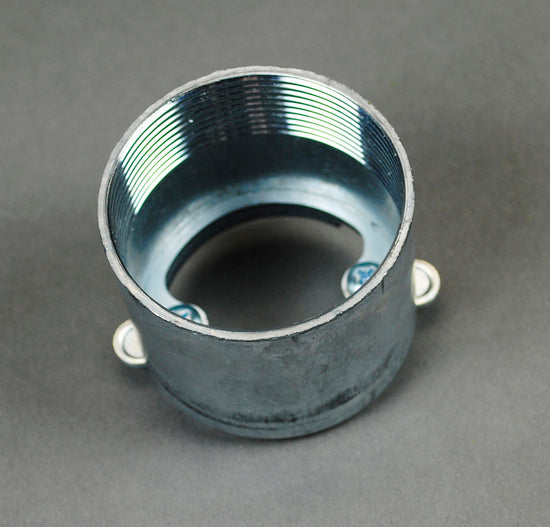

436-2-2 2 51mm IPS Duct Round Afterset
2 in (50.8 mm) IPS Duct Round Afterset for in-floor concrete installations and duct activation.
The Wiremold 436-2-2 is a 2 in (50.8 mm) diameter IPS Duct Round Afterset designed for in-floor systems. This service fitting is intended for installation either before or after a concrete pour to facilitate cable activation from the duct. To properly install this component, a 2 1/2'' (64mm) hole must be drilled in the concrete and a 2 1/4'' (57mm) hole must be drilled in the duct. This product is TAA compliant and meets all RoHS material restrictions. The warranty for this item is 1-Year from Installation or 2-Years from Day of Sale.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Diameter | 2 in (50.8 mm) |
| TAA Compliant | Yes |
| Certifications | TAA |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
Resources
Questions about this part
What hole sizes are required for the 436-2-2 installation?
You must drill a 2 1/2'' (64mm) hole in the concrete and a 2 1/4'' (57mm) hole in the duct.
Can the 436-2-2 be installed after the concrete has been poured?
Yes, this afterset is specifically designed to be installed either before or after a concrete pour.
Is this product TAA compliant?
Yes, the 436-2-2 is TAA compliant and meets RoHS material restrictions.
What is the warranty for this Wiremold fitting?
The product carries a warranty of 1-Year from Installation or 2-Years from Day of Sale.
What documentation is available for the Walkerduct IPS Series?
Installation instructions for the Walkerduct IPS Series Modular Afterset are available in PDF format.
