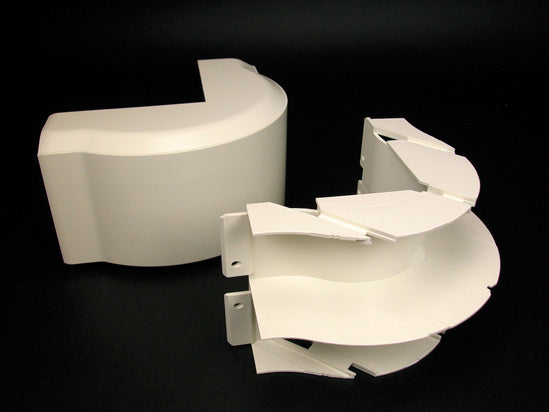

40N2F19V CableSmart 40N2 Radiused Full Capacity External Elbow Fitting in Ivory
External 90-degree elbow fitting for CableSmart 40N2 raceways, providing a 2" (51mm) bend radius for fiber and UTP cabling
The Wiremold 40N2F19V is an external 90-degree corner fitting designed for the CableSmart 40N2 series. This component features integral dividers that allow for the safe routing of UTP and fiber optic cables by maintaining a 2" (51mm) cable bend radius. Each leg of the fitting measures 4 1/2" (114mm) in length, making it a versatile choice for both lay-in and pull-through installation methods. This TAA-compliant fitting is finished in Ivory and is built to meet RoHS material restrictions, ensuring compliance for sensitive project environments. It is intended for use with the CableSmart 40N2 non-metallic raceway system to manage cable transitions around external corners.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Color | Ivory |
| TAA Compliant | Yes |
| Certifications | TAA |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
Resources
Questions about this part
What is the minimum bend radius for this fitting?
The 40N2F19V provides a 2" (51mm) cable bend radius to protect UTP and fiber optic installations.
What installation methods does this elbow support?
This external elbow is suitable for both lay-in and pull-through installation methods.
Does this part meet TAA requirements?
Yes, the 40N2F19V is TAA compliant and meets RoHS material restrictions.
What are the dimensions of the legs on this fitting?
Each leg of this 40N2F19V elbow fitting measures 4 1/2" (114mm) in length.
Is there a different color available for this part?
Yes, this is the Ivory version; a White variant is also available in the 40N2 series.
