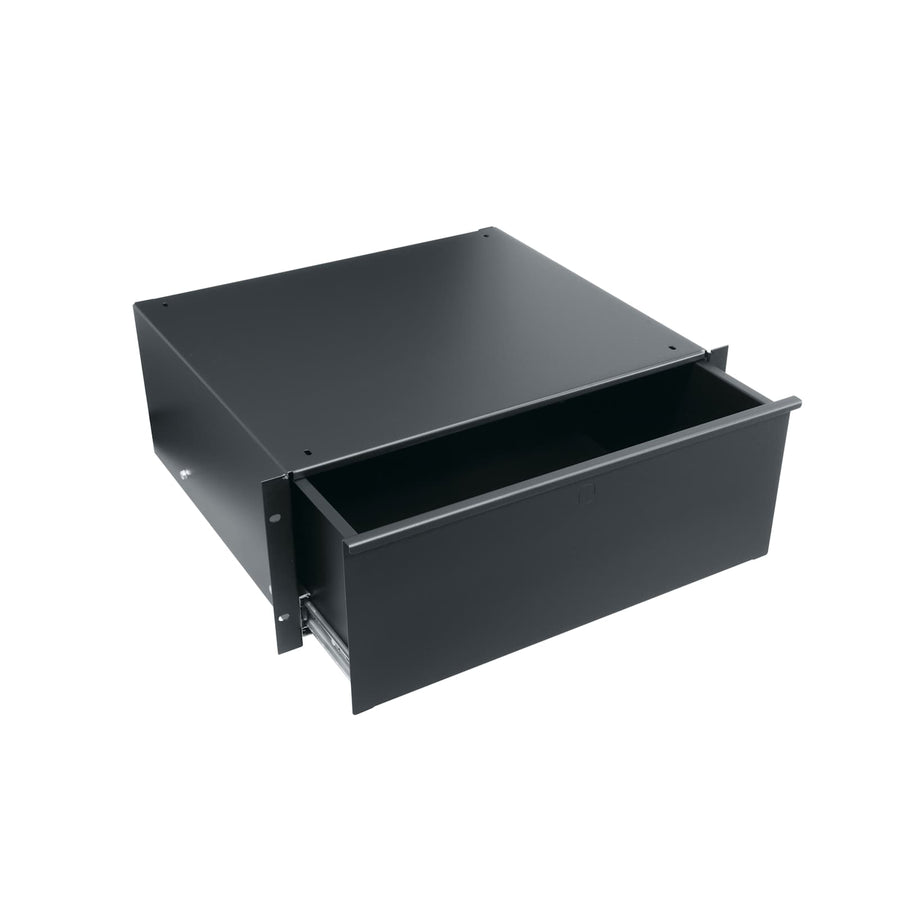

4 RU Utility Rack Drawer
4 RU rack drawer with 50 lbs weight capacity and full-extension ball bearing slides
The Middle Atlantic UD4 provides a secure and organized storage solution for rack-mounted environments. This 4 RU utility drawer is constructed from steel with a black powder coat finish and ships fully assembled for immediate installation. It utilizes full-extension ball bearing slides that extend 14" to allow easy access to the interior, which measures 15-7/8" wide and 14-1/2" deep. The drawer includes a face-formed drawer pull for convenient opening. For installations requiring enhanced security, users can install optional accessories such as a keylock (KYLK) or a latch (LATCH). This TAA compliant unit is UL Listed and designed to support a weight capacity of 50 lbs (22.7 kg).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 15.85 in (40.3 cm) |
| Height | 7 in (17.8 cm) |
| Rack Units | 4 RU |
| UL Load Capacity | 50 lbs (22.7 kg) |
| Weight Capacity | 50 lbs (22.7 kg) |
| Width | 19 in (48.3 cm) |
| Mounting Points | 2 |
| UPC | 656747023019 |
| Certifications | UL Listed |
Resources
Questions about this part
Will this drawer fit in my standard rack?
Yes, the UD4 is a standard 19 in (48.3 cm) wide drawer designed for 4 RU rack spaces.
Can I secure the contents of the drawer?
Yes, you can install optional user-installed accessories like a keylock (KYLK) or a latch (LATCH) to secure the drawer.
How much weight can the UD4 hold?
The UD4 has a weight capacity of 50 lbs (22.7 kg) and a UL Load Capacity of 50 lbs (22.7 kg).
How deep is the storage area inside the drawer?
The interior dimensions of the drawer measure 14-1/2" deep and 15-7/8" wide.
Does the drawer come pre-assembled?
The UD4 is shipped fully assembled and is ready for installation upon arrival.
