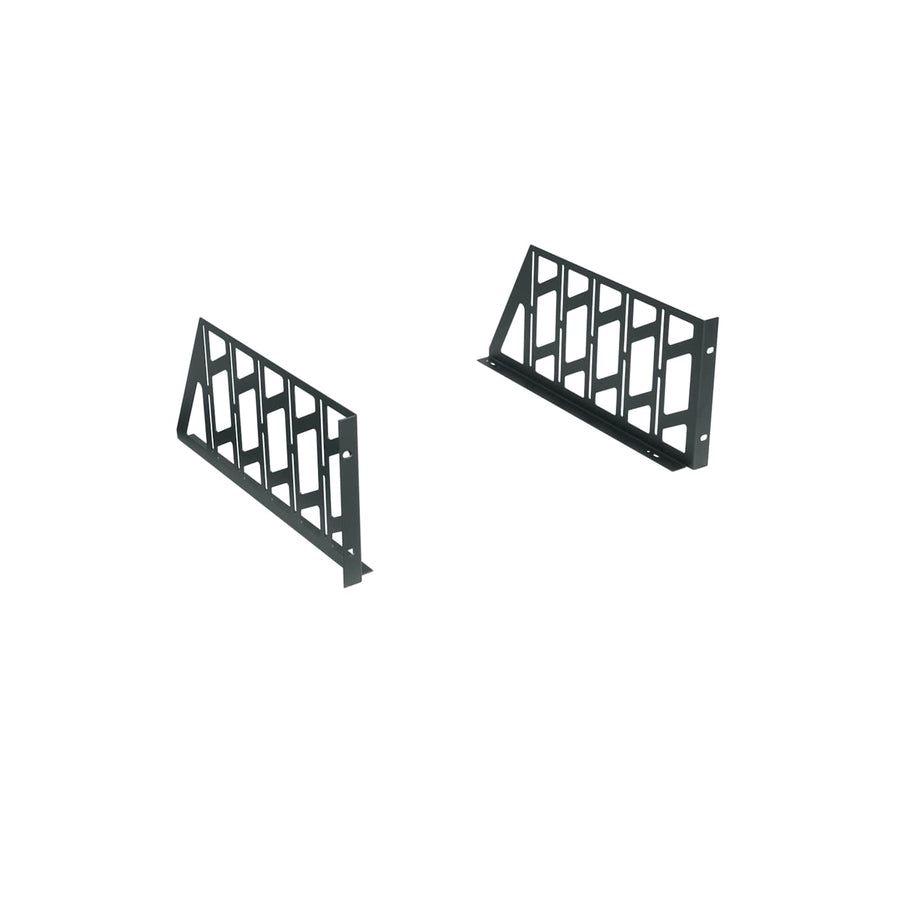

4 RU Rackshelf Ears for Use with Bottom - KDE4S
4 RU steel rack ears for KD Series rackshelves, finished in black powder coat and TAA compliant
The KDE4S provides 4 RU of mounting space for KD Series utility rackshelves. These steel ears are designed to be used specifically with the KDB-14 Rackshelf Bottom (14 Inches Deep). Because they ship ready-to-assemble, they help minimize freight costs and save storage space on-site. These ears feature a fully vented design to promote airflow and cooling for equipment, and they are compatible with clamping bars for secure installation. They are finished in a black powder coat and include all necessary assembly hardware. This component is part of the KD Knock Down Utility Rackshelf series, which offers ear heights ranging from 2 to 10 spaces to accommodate different equipment requirements.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 11.47 in (29.1 cm) |
| Height | 7 in (17.8 cm) |
| Package Count | 1 |
| Rack Units | 4 RU |
| Shipping Weight | 2.05 lbs (0.9 kg) |
| Weight Capacity | 85 lbs (38.6 kg) |
| Width | 19 in (48.3 cm) |
| Finish | Black Powder Coat |
| Material | Steel |
| Mounting Points | 2 |
| UPC | 656747009068 |
You'll need these with it
Questions about this part
What rack shelf base is the KDE4S compatible with?

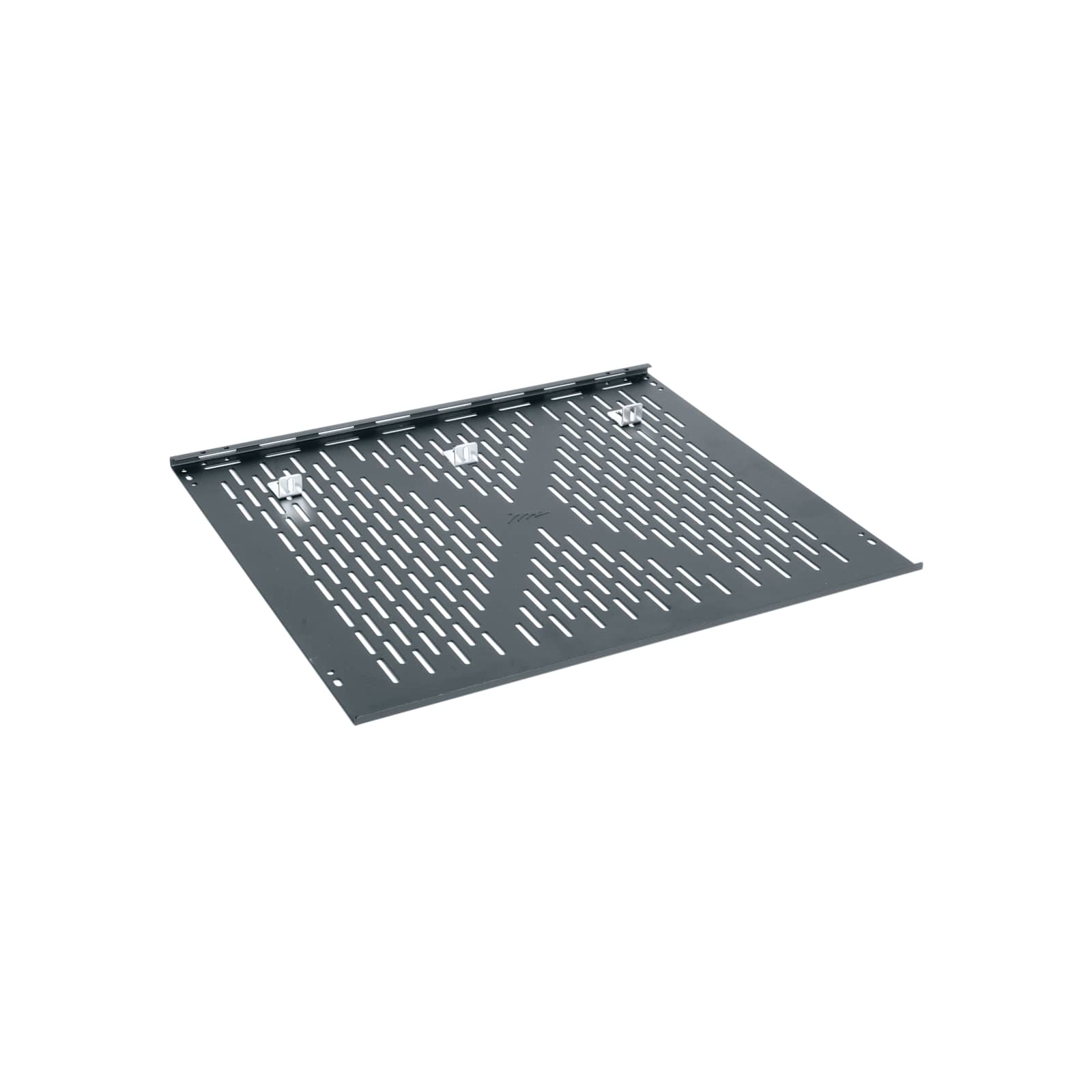

The KDE4S is only compatible with the KDB-14 Rackshelf Bottom, which is 14 inches deep.
How much weight can this 4 RU rackshelf assembly hold?
When properly assembled, the configuration supports a weight capacity of 85 lbs (38.6 kg).
Does this include the hardware needed for assembly?
Yes, all assembly hardware is included with the KDE4S ears.
Are these ears suitable for high-airflow requirements?
Yes, the ears are fully vented to promote airflow and cooling for installed equipment.
Is this product TAA compliant?
Yes, this product is TAA compliant and carries PEP certification.
