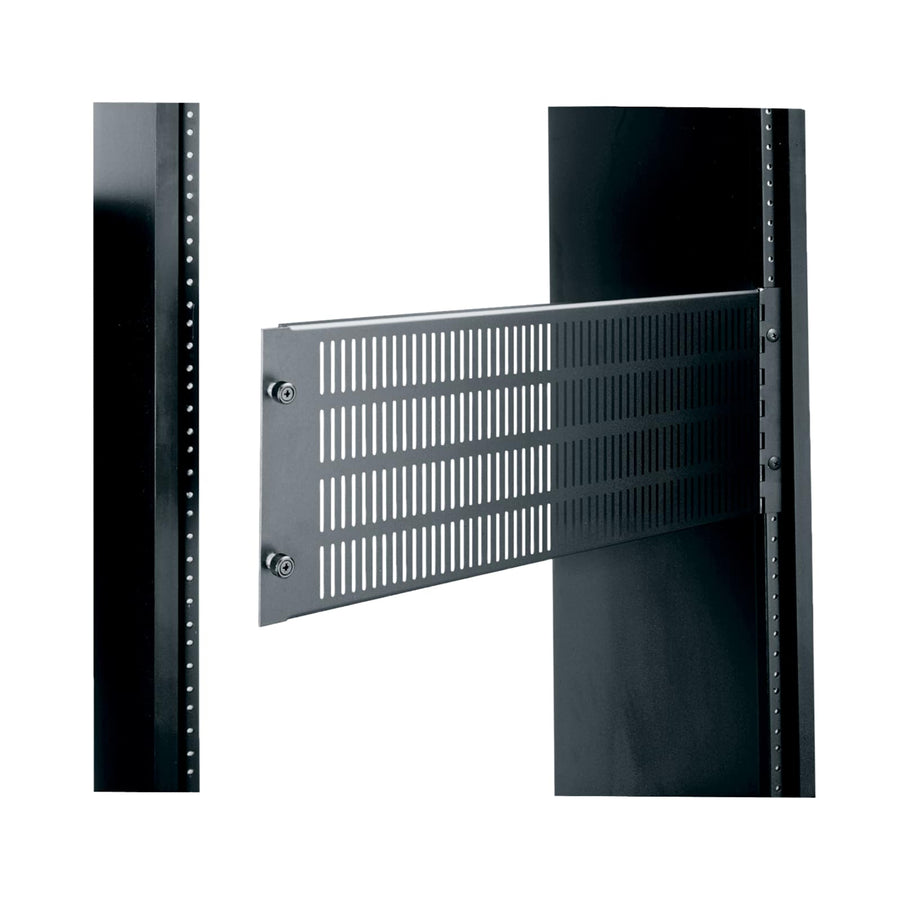

4 RU Rack Vent Panel, Hinged
4 RU hinged vented rack panel for easy interior access and improved airflow, finished in black powder coat
The Middle Atlantic APV-4 is a 4 RU vented rack panel designed to facilitate rapid access to the rear of connector panels within a rack. Constructed from 13-gauge steel that is easily machinable, this hinged panel allows for continuous airflow through its 17% vent open area while simultaneously preventing accidental contact with internal components. The APV-4 features a hinged design on one side for efficient servicing and utilizes captive 10-32 threaded thumbscrews to secure the panel. These thumbscrews allow for tool-free operation and are designed to remain attached to the panel to prevent loss during installation or maintenance. This 19 in (48.3 cm) width panel is finished in a black powder coat and is TAA compliant.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 1.4 in (3.6 cm) |
| Height | 7 in (17.8 cm) |
| Package Count | 1 |
| Panel Width | 19 in (48.3 cm) |
| Rack Units | 4 RU |
| Vent Open Area Percentage | 17 % |
| Width | 19 in (48.3 cm) |
| Finish | Black Powder Coat |
All other specifications 5
| Hinged | Yes |
| Light Blocking | No |
| Mounting Points | 2 |
| Style | Hinged |
| UPC | 656747066641 |
Resources
Questions about this part
How do I access the rear of my rack equipment with the APV-4?
The APV-4 features a hinged design on one side and uses captive 10-32 threaded thumbscrews, allowing you to open the panel without tools for quick interior access.
Will this panel provide ventilation for my rack components?
Yes, the vented design of this 4 RU panel provides a 17% vent open area to allow airflow into the rack while preventing accidental contact.
What tools are required to install or remove this panel?
No tools are required for operation because the panel uses captive 10-32 threaded thumbscrews that can be turned by hand.
Is the APV-4 suitable for TAA compliant projects?
Yes, this APV-4 rack panel is TAA compliant.
What is the difference between this and a solid access panel?
While this APV-4 is a vented panel for airflow, Middle Atlantic also offers solid versions of this hinged access panel for applications where airflow is not the primary requirement.
