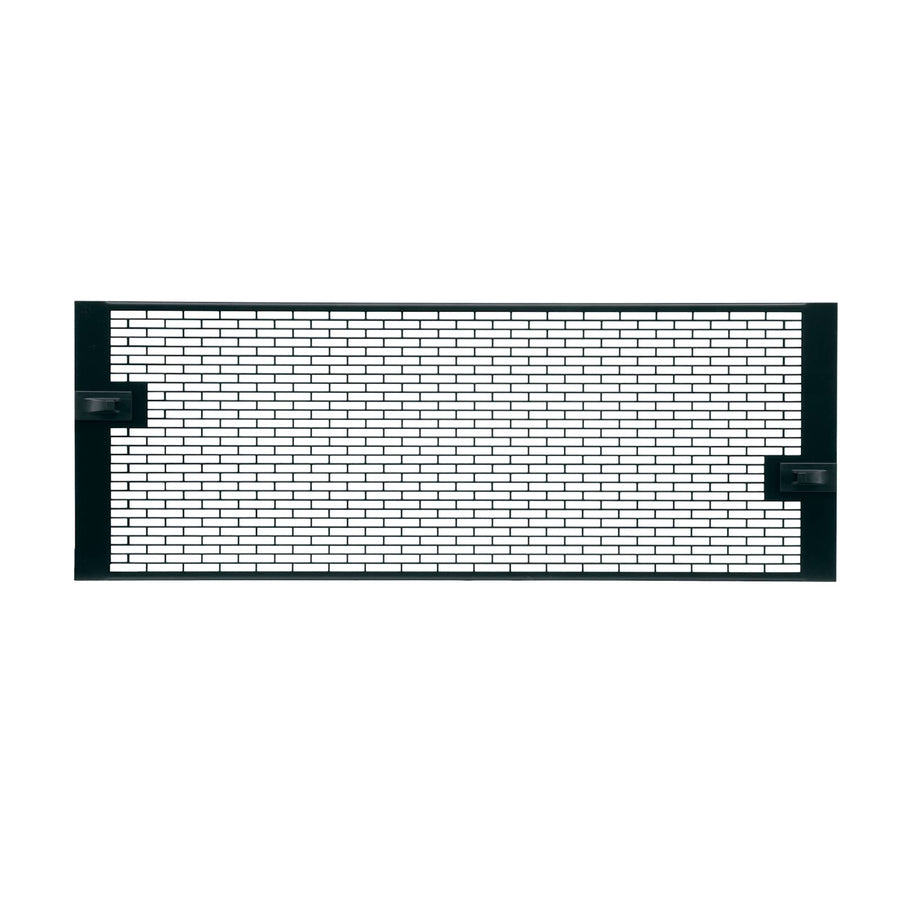

4 RU Forward Tool-Less Vent Panel, 74% Open Area
4 RU tool-less vent panel with 74% open area for BGR Series enclosures
The Middle Atlantic FWD-VT4 is a 4 RU vent panel designed to accelerate rack assembly by eliminating the need for traditional rack screws. This forward-vented panel uses spring-loaded ergonomic clips to secure itself directly into a Forward rackrail, making the installation process up to 5X faster than hardware-dependent alternatives. The flanged steel construction features a black powder coat finish and a sleek venting pattern that provides 74% open area for optimal airflow. This panel is fully compatible with all BGR Series enclosures and specifically requires the use of Forward rackrails for the tool-less mechanism to function. By using these installation time savers, integrators can quickly manage thermal loads in a rack without the manual effort of mounting individual screws.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Height | 7 in (17.8 cm) |
| Panel Width | 19 in (48.3 cm) |
| Product Weight | 0.9 lbs (0.4 kg) |
| Rack Units | 4 RU |
| Shipping Weight | 2 lbs (0.9 kg) |
| Color | Black |
| Special Features | ForwardInstallation Time Savers |
| UPC | 656747384608 |
| Patent Number | PENDING |
| Patents | www.legrandav.com/patents |
Resources
Questions about this part
Will the FWD-VT4 fit in my BGR Series enclosure?
Yes, this panel is compatible with all BGR Series enclosures when used with Forward rackrails.
Do I need tools to install the FWD-VT4?
No, the spring-loaded clips allow for tool-less installation, making it up to 5X faster than using rack screws.
How much airflow does the FWD-VT4 provide?
The venting pattern provides a 74% open area to assist with thermal management.
What is the difference between this and a standard vent panel?
Unlike standard panels that require rack screws, the FWD-VT4 uses a hardware-free, clip-in system for much faster service and installation.
Which document do I need for submittals?
You can refer to the Forward Panels A&E Specification Sheet or the CAD Technical Specification Drawings for detailed submittal data.
