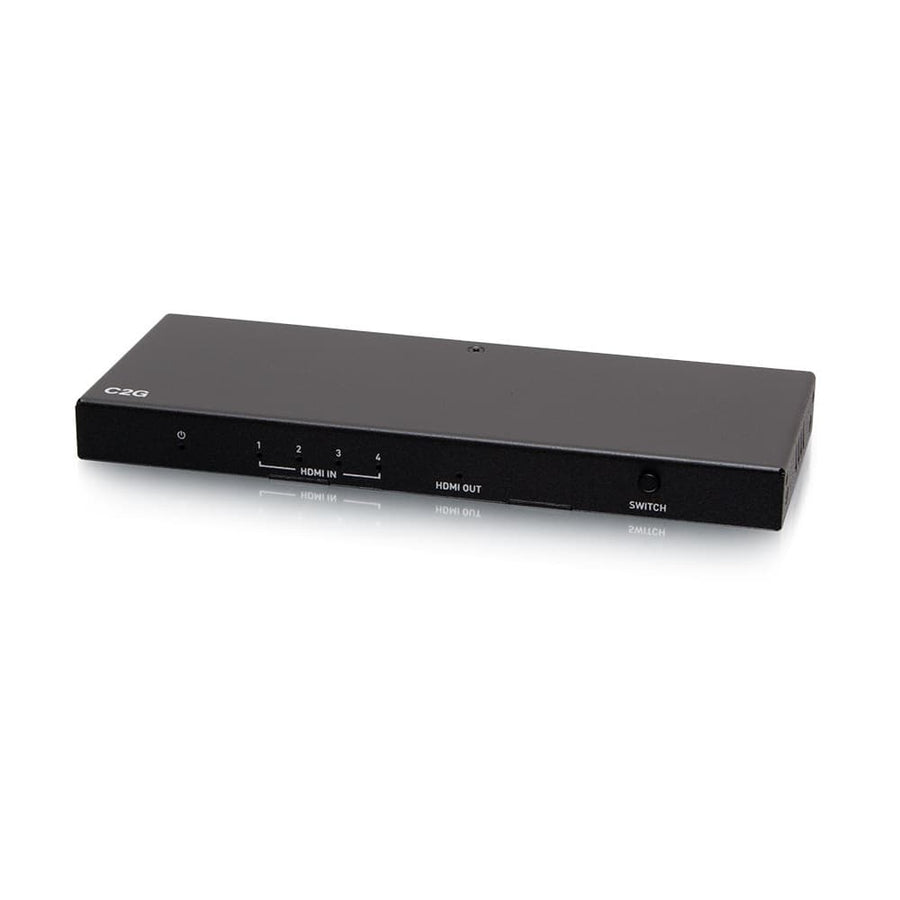

4-Port HDMI® Switch - 4K 60Hz
4-Port HDMI switch supporting 4K @ 60Hz (4:4:4) with HDCP 2.2 and 18 Gbps bandwidth
The C2G41604 is a 4-input, 1-output HDMI switch designed for high-resolution environments requiring HDMI 2.0 standard support. It handles video resolutions up to 4K @ 60Hz with 4:4:4 chroma subsampling and supports total data rates of 18 Gbps. This active device is HDCP 2.2 compliant, making it suitable for modern hardware such as gaming consoles, Blu-ray players, and digital cable or satellite boxes. To facilitate easy operation, installers can use the manual pushbutton located on the front panel or a remote control via IR. The switch supports advanced audio formats including Dolby Atmos, Dolby TrueHD, DTS:X, DTS-HD Master Audio, and PCM 7.1. For connectivity, the unit features four HDMI Type A female ports and a 3.5mm female jack for IR control. The device includes a power adapter with a 1800mm cable length and accepts 100-240VAC input, outputting 5VDC at 1A.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| AC Voltage Output | 5 VAC |
| Amps | 1 Amp |
| Cable Diameter | 0.25 in (6.3 mm) |
| Cable Length | 6 ft (1.8 m) |
| Operating Humidity Max | 90% RH (Non-Condensing) |
| Operating Humidity Min | 10% RH (Non-Condensing) |
| Operating Temperature | 32° - 113°F (0° - 45°C) |
| Shipping Weight | 1.5 lbs (0.7 kg) |
All other specifications 21
| Storage Humidity Max | 90% RH (Non-Condensing) |
| Storage Humidity Min | 10% RH (Non-Condensing) |
| Storage Temperature Max | 518 Fahrenheit (270 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Audio Specifications | Dolby AtmosDolby TrueHDDTS:XDTS-HD Master AudioPCM 7.1 |
| Cable Type | HDMI |
| Chroma Subsampling | 4:4:4 |
| Color | Black |
| Connector 1 | (1) HDMI Female |
| Connector 2 | (4) HDMI Female3.5mm Female |
| Port Selection | API CommandsPushbuttonRemote Selector |
| Product Type | Active DeviceSwitch |
| TAA Compliant | No |
| Technology Specifications | HDCP 2.2HDMI 2.0 |
| UPC | 757120416043 |
| Video Input Support | HDMI |
| Video Output Support | HDMI |
| Video Resolution | 1080p1080p @ 60Hz4K4K @ 30Hz4K @ 60Hz |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 18 GBPS |
| Warranty | 5 years |
Resources
You'll need these with it
Questions about this part
What video resolutions can the C2G41604 handle?
The switch supports 4K @ 60Hz (4:4:4), 4K @ 30Hz, 1080p @ 60Hz, and 1080p resolution.
Will this HDMI switch work with my gaming console or Blu-ray player?
Yes, it is ideal for connecting devices like gaming consoles, Blu-ray players, or satellite boxes, providing 18 Gbps bandwidth and HDCP 2.2 compliance.
How can I change the active video source on the switch?
You can switch between the four inputs using the manual pushbutton on the front of the unit or by using an IR remote control.
Does this device support high-end audio formats?
Yes, it supports Dolby Atmos, Dolby TrueHD, DTS:X, DTS-HD Master Audio, and PCM 7.1 audio specifications.
What power requirements are needed for the C2G41604?
The device is an active unit that uses a 5VDC, 1A power adapter with an input of 100-240VAC, 50-60Hz.
