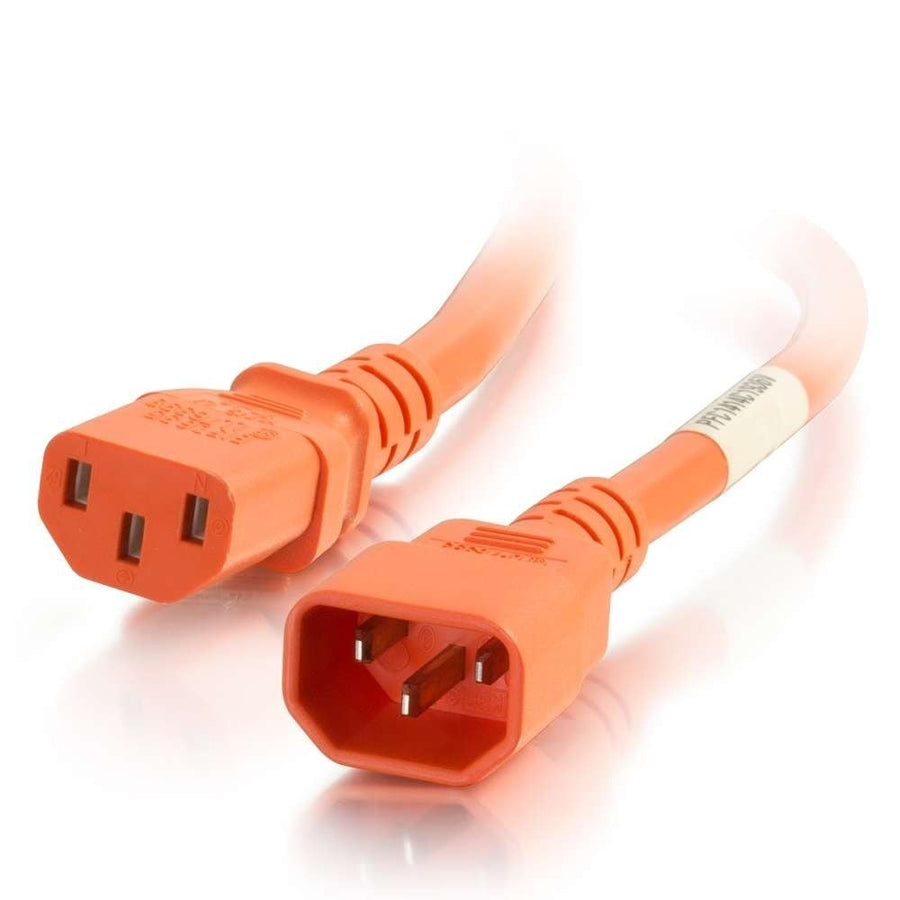

4 ft 14AWG Power Cord (IEC320C14 to IEC320C13) - Orange
4 ft 14AWG orange power cord featuring IEC320C14 to IEC320C13 connectors for high-density data center environments
The CG17542 is a 4 ft (1.2 m) orange power cord designed for high-density environments like wiring closets or limited cabinet spaces. This cable uses color-coding to help IT technicians quickly identify equipment by functionality or location, which reduces the risk of accidental disconnections and costly downtime during maintenance. It features heavy-duty 14AWG conductors and an SVT rated jacket to ensure stability and durability in data center applications. This specific SKU is part of a larger series of 14AWG power cords available in different lengths and colors, such as Blue, Green, Red, White, and Yellow. The CG17542 is intended to connect PDUs to servers, switches, or other critical data center hardware. It is rated for 10 Amps and up to 250 Volts, providing reliable operating power for connected devices. This cable features a full-length color jacket with matched orange connectors to facilitate rapid visual identification in complex rack configurations.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Amps | 10 Amp |
| Cable Length | 4 ft (1.2 m) |
| Shipping Weight | 0.5 lbs (0.2 kg) |
| Voltage | 250 V |
| Wire Gauge | 14 |
| Cable Type | Power Cable |
| Color | Orange |
| Connector 1 | (1) C14 IEC |
All other specifications 7
| Connector 2 | (1) C13 IEC |
| Jacket Rating | SVT Rated |
| Product Type | Power Cord |
| TAA Compliant | No |
| UPC | 757120175421 |
| Certifications | NDAA 889Prop 65REACHRoHSTSCA |
| Warranty | Lifetime |
Resources
Questions about this part
Will this CG17542 cord work with my server or switch?
Yes, this cord is designed to connect PDUs to servers, switches, or other data center equipment using standard IEC320C14 to IEC320C13 connectors.
What are the electrical ratings for the CG17542?
The CG17542 is rated for a 10 Amp load and operates at up to 250 V.
Is there a different color or length available for this series?
Yes, the 14AWG series includes other color options like Blue, Green, Red, White, and Yellow, and comes in various lengths including 1 ft, 3 ft, 5 ft, 6 ft, and 8 ft.
What certifications does this power cord carry?
The CG17542 is compliant with REACH, RoHS, TSCA, NDAA 889, Prop 65, and is listed with a lifetime warranty.
What is the jacket rating for this cable?
This 4 ft (1.2 m) power cord features an SVT rated jacket for use in your data environment.
