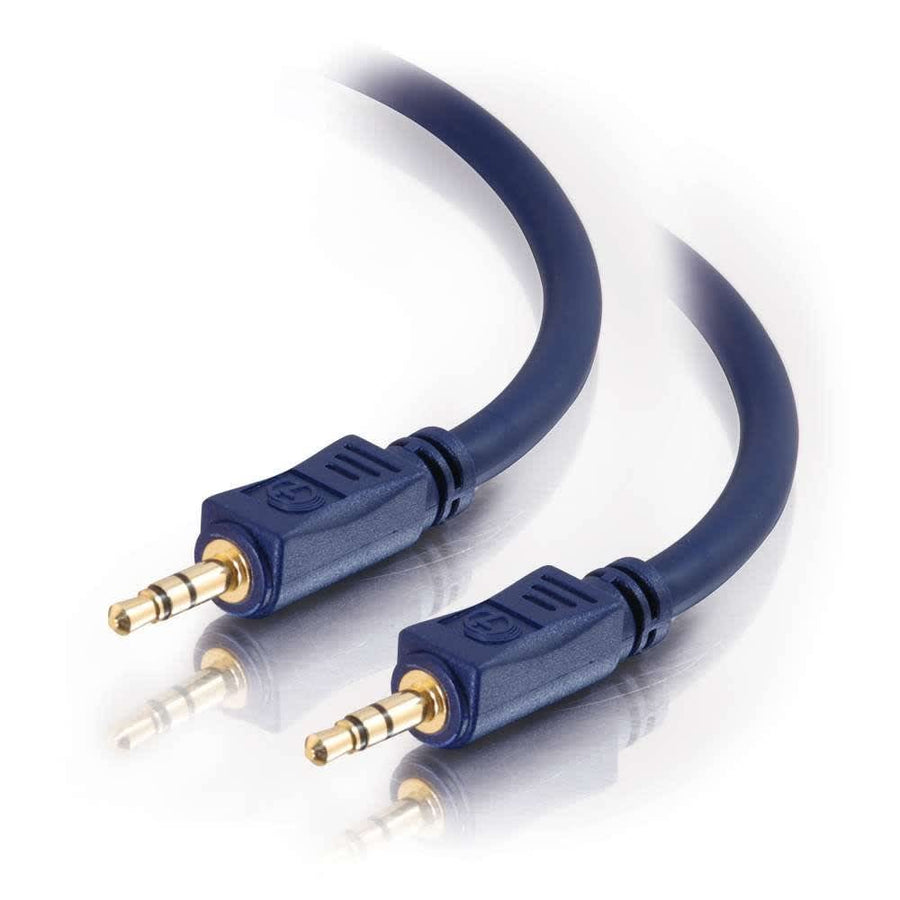

3ft (0.9m) Velocity™ 3.5mm M/M Stereo Audio Cable
3ft (0.9m) stereo audio cable featuring 3.5mm male connectors and 27 AWG copper conductors for reliable audio signal transfer
The C2G CG40601 is a 3ft (0.9m) Velocity™ 3.5mm M/M stereo audio cable designed to facilitate high-quality music transfer between various audio devices. This cable is suitable for connecting a PC sound card, portable CD player, MP3 player, iPod®, or any other mini-stereo audio device to a secondary audio output. It is constructed with 27 AWG oxygen-free copper conductors to ensure signal integrity. To prevent unwanted EMI/RFI interference, the cable utilizes an aluminum foil shield along with a drain wire. The assembly features fully molded, gold-plated connectors that provide integrated strain relief for a secure and durable connection. This blue cable has a 0.24 in (6 mm) diameter and a PVC jacket. It is rated for operating temperatures ranging from -4° - 176°F (-20°C - 80°C) and is compliant with RoHS, REACH, and TAA requirements.
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 3 ft (0.9 m) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Shipping Weight | 0.12 lbs (0.1 kg) |
| Storage Humidity Max | 80% RH (Non-Condensing) |
| Storage Humidity Min | 20% RH (Non-Condensing) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
All other specifications 14
| Wire Gauge | 27 |
| Cable Shielding | Shielded |
| Cable Type | Audio |
| Color | Blue |
| Conductor Material | Copper |
| Connector 1 | (1) 3.5mm Stereo Male |
| Connector 2 | (1) 3.5mm Stereo Male |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120406013 |
| Certifications | NDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Questions about this part
What devices can I connect with the CG40601 audio cable?
This cable connects mini-stereo audio devices like an iPod®, MP3 player, portable CD player, or a PC sound card to another audio device.
How does this cable handle interference?
The CG40601 is shielded with aluminum foil and includes a drain wire to help reduce unwanted EMI/RFI interference.
What is the connector type for this 3ft audio cable?
It features two 3.5mm stereo male connectors on each end of the 0.9 m cable.
What is the operating temperature range for the CG40601?
The cable is rated for operating temperatures between -4° - 176°F (-20°C - 80°C).
What is the conductor material and gauge?
The cable utilizes 27 AWG oxygen-free copper conductors for signal transmission.
