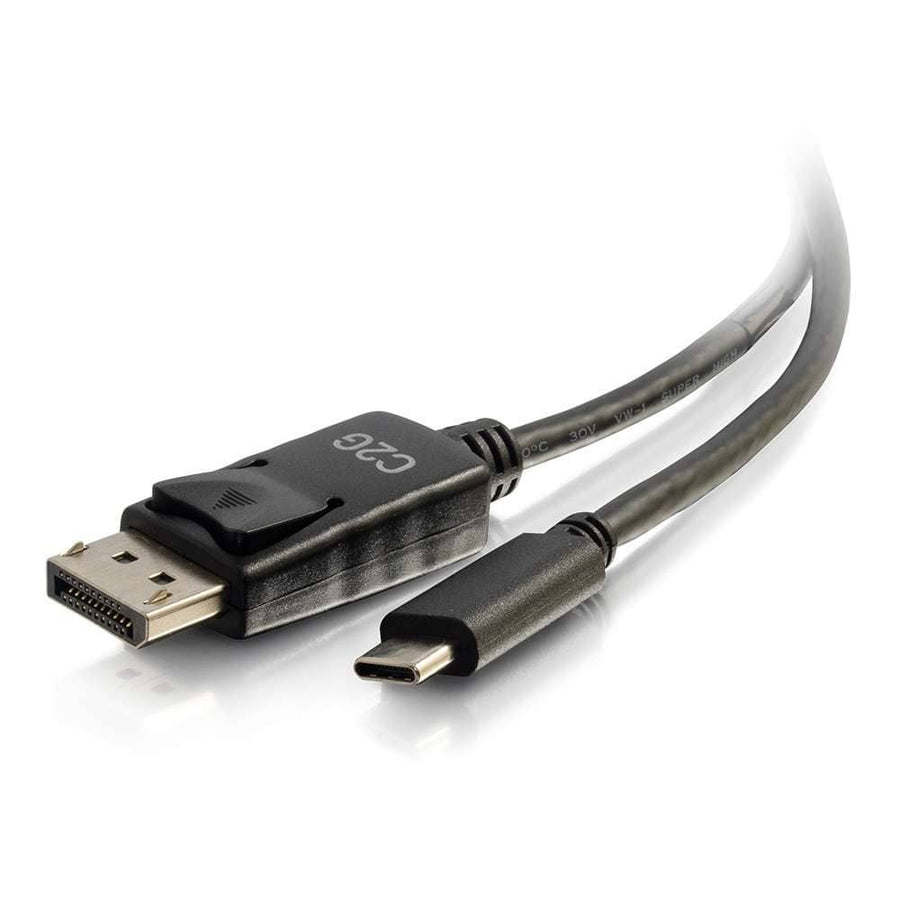

3ft (0.9m) USB-C to DisplayPort™ Adapter Cable 4K 30Hz - Black
USB-C to DisplayPort adapter cable for 4K @ 30Hz resolution, 3 ft (0.9 m) length, featuring a plug-and-play design
The CG26901 is a 3 ft (0.9 m) USB-C to DisplayPort adapter cable designed for direct connection between a USB-C enabled laptop or mobile device and a DisplayPort input on a projector or display. This cable form factor serves as a specialized adapter solution, eliminating the need for separate components in professional workspace applications, offices, or classrooms. By utilizing the audio/video support inherent in USB Type-C ports, this cable feeds a high-quality video signal to the display. It supports resolutions up to 4K (4096 x 2160 at 30Hz), ensuring crisp image delivery for video presentations. The device is compatible with 3.1 USB-C and Thunderbolt™ 3 ports and features a reversible, symmetrical USB-C connector for ease of use. This USB 3.0 technology cable provides a data transfer rate of 10 GBPS and is constructed with a PVC jacket and a 0.19 in (4.7 mm) cable diameter. It is a plug-and-play solution that requires no drivers for operation.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.19 in (4.7 mm) |
| Cable Length | 3 ft (0.9 m) |
| Operating Temperature | 32° to 122°F (0° to 50°C) |
| Shipping Weight | 0.1 lbs (0.1 kg) |
| Storage Temperature | -13° to 158°F (-25°C to 70°C) |
| Storage Temperature Max | 158 Fahrenheit (70 Celsius) |
| Storage Temperature Min | -13 Fahrenheit (-25 Celsius) |
| Cable Type | AdapterUSBVideo |
All other specifications 14
| Color | Black |
| Connector 1 | (1) USB-C Male(1) USB-C Male |
| Connector 2 | (1) DisplayPort Male(1) DisplayPort Male |
| Product Type | AdapterCable |
| TAA Compliant | No |
| Technology Specifications | USB 3.0 |
| UPC | 757120269014 |
| Video Input Support | DisplayPortUSB-C |
| Video Output Support | DisplayPortUSB-C |
| Video Resolution | 1080p4K4K @ 30Hz |
| Certifications | CEFCCNDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 10 GBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
Questions about this part
Will this CG26901 cable work with my Thunderbolt 3 laptop?
Yes, the CG26901 is compatible with both Thunderbolt™ 3 and 3.1 USB-C ports for direct connection to a DisplayPort input.
What video resolutions can the CG26901 support?
This adapter cable supports video resolutions including 1080p and up to 4K (4096 x 2160) at a 30Hz refresh rate.
Does this cable require any software installation?
No, this is a plug-and-play cable that does not require any drivers to function with your USB-C enabled device.
How long is the CG26901 adapter cable?
The total cable length is 3 ft (0.9 m) with a cable diameter of 0.19 in (4.7 mm).
What is the difference between the CG26901 and other USB-C to DisplayPort cables?
The CG26901 is part of a series available in different lengths like 1 ft, 6 ft, 9 ft, and 12 ft, as well as different color options like white.
