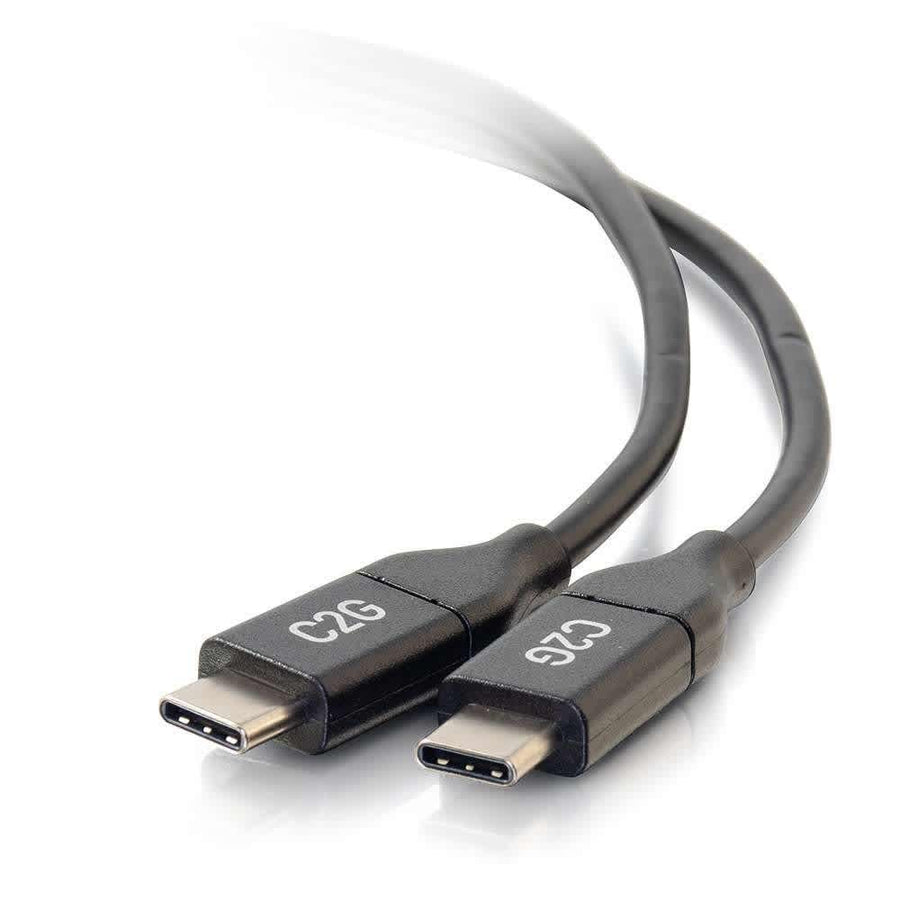

3ft (0.9m) USB-C to C 2.0 Male to Male Cable (5A)
3ft USB-C to C 2.0 cable supporting 5A charging and 480 Mbps data transfer
The CG28827 is a 3ft (0.9m) USB-C to C 2.0 Male to Male cable designed for efficient charging and data synchronization between USB-C enabled devices. This cable supports a 5A charging output, making it suitable for powering high-demand hardware such as the Apple® iPad Pro®, MacBook®, MacBook Air®, and MacBook Pro®, as well as the Microsoft® Surface® Book 2 and Surface Go. It facilitates bidirectional signal transmission with data transfer rates of up to 480 MBPS. The cable features a symmetrical, reversible USB-C connector design on both ends, ensuring it can be plugged in without checking orientation. Constructed with a 0.15 in (3.8 mm) diameter PVC jacket and 30 wire gauge, it maintains a 1.5 in (38 mm) bend radius. This cable is compliant with NDAA 889, RoHS, REACH, and TSCA, and is rated for operation between 32° to 122°F (0° to 50°C).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Amps | 5 Amp |
| Bend Radius | 1.5 in (38 mm) |
| Cable Diameter | 0.15 in (3.8 mm) |
| Cable Length | 3 ft (0.9 m) |
| Operating Humidity Max | 85% RH (Non-Condensing) |
| Operating Humidity Min | 15% RH (Non-Condensing) |
| Operating Temperature | 32° to 122°F (0° to 50°C) |
| Shipping Weight | 0.1 lbs (0.1 kg) |
All other specifications 21
| Signal Transmission | Bidirectional |
| Storage Humidity Max | 85% RH (Non-Condensing) |
| Storage Humidity Min | 15% RH (Non-Condensing) |
| Storage Temperature | -13° to 158°F (-25°C to 70°C) |
| Storage Temperature Max | 158 Fahrenheit (70 Celsius) |
| Storage Temperature Min | -13 Fahrenheit (-25 Celsius) |
| Wire Gauge | 30 |
| Cable Type | USB |
| Color | Black |
| Connector 1 | (1) USB-C Male(1) USB-C Male |
| Connector 2 | (1) USB-C Male(1) USB-C Male |
| Product Type | Cable |
| TAA Compliant | No |
| Technology Specifications | USB 2.0 |
| UPC | 757120288275 |
| Video Input Support | USB-C |
| Video Output Support | USB-C |
| Certifications | NDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 480 MBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
Questions about this part
Will the CG28827 work with my MacBook or iPad Pro?
Yes, this cable is compatible with Apple® iPad Pro®, MacBook®, MacBook Air®, and MacBook Pro® devices.
Can I use the CG28827 for data transfer and charging?
Yes, it supports bidirectional signal transmission for data rates up to 480 MBPS and provides 5A charging output.
What is the maximum data transfer speed for this USB-C cable?
This USB 2.0 cable supports data transfer rates of up to 480 MBPS.
What is the difference between this cable and other lengths in the series?
This specific SKU (CG28827) is the 3 ft (0.9 m) version; the series also includes 10 ft and 6 ft options.
Is this cable NDAA compliant?
Yes, this product is listed with NDAA 889 certification.
