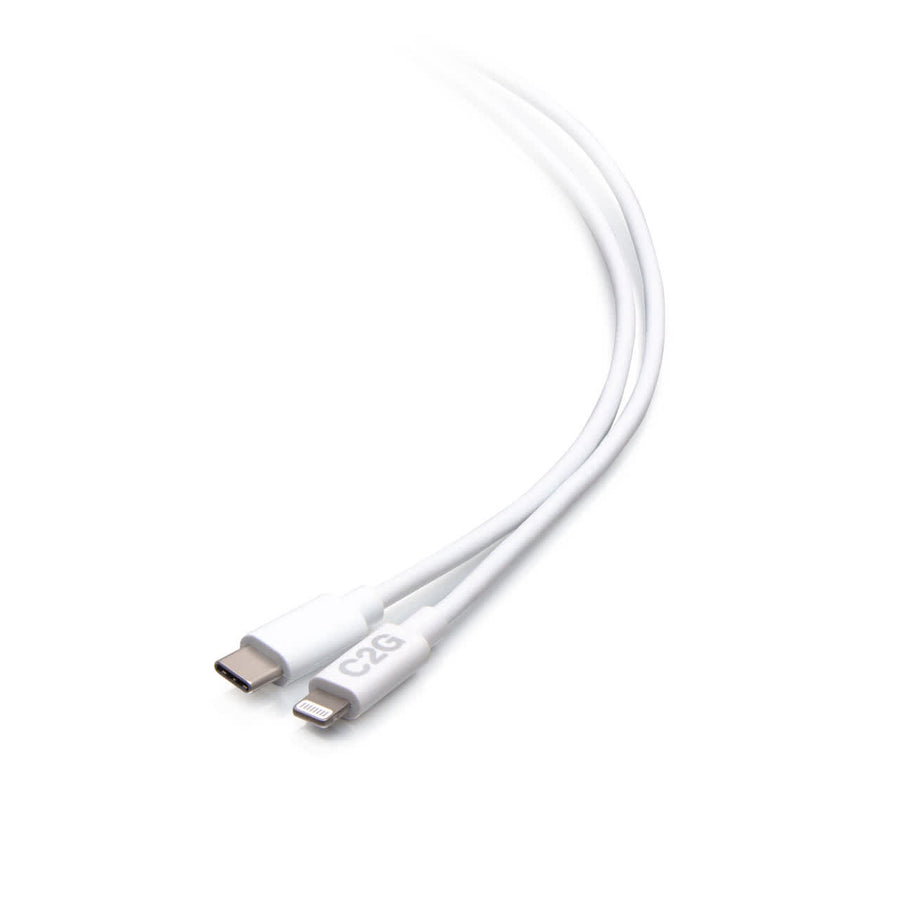

3ft (0.9m) USB-C® Male to Lightning Male Sync and Charging Cable - White
3ft USB-C Male to Lightning Male cable for 20W charging and data synchronization in white
The C2G54558 is a 3ft (0.9m) USB-C Male to Lightning Male sync and charging cable designed for high-performance connectivity. This MFi-certified cable is approved by Apple, ensuring it is safe for use with a wide range of Lightning-enabled hardware while protecting your device from electrical damage. It is engineered to support power delivery up to 20W and provides data transfer rates of 480 Mbps via USB 2.0 technology. The cable features a symmetrical, reversible design on both the USB-C and Lightning connectors, allowing for immediate plug-and-play operation without worrying about orientation. Built with a PVC jacket and a 0.13 in (3.2 mm) cable diameter, this white cable is designed for durability in office, home, or travel environments. It supports a voltage rating of 30V and is rated for operating temperatures between 32°F and 113°F (0°C to 45°C).
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
Main specifications 8
| Bend Radius | 0.63 in (16 mm) |
| Cable Diameter | 0.13 in (3.2 mm) |
| Cable Length | 3 ft (0.9 m) |
| Operating Humidity Max | 85% RH (Non-Condensing) |
| Operating Humidity Min | 15% RH (Non-Condensing) |
| Operating Temperature | 32° - 113°F (0° - 45°C) |
| Shipping Weight | 0.06 lbs (0 kg) |
| Storage Humidity Max | 85% RH (Non-Condensing) |
All other specifications 14
| Storage Humidity Min | 15% RH (Non-Condensing) |
| Storage Temperature Max | 167 Fahrenheit (75 Celsius) |
| Storage Temperature Min | 32 Fahrenheit (0 Celsius) |
| Watts | 20 W |
| Color | White |
| Connector 1 | (1) USB-C Male |
| Connector 2 | (1) Lightning Male |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120545583 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 480 MBPS |
| Jacket Material | PVC |
Questions about this part
Will this C2G54558 cable work with my iPhone or iPad?
Yes, this MFi-certified cable is compatible with all devices equipped with a Lightning port, including iPhones, iPads, AirPods, and the Apple Pencil.
Can I use this cable to charge my Apple TV accessories?
Yes, the C2G54558 is compatible with the Siri Remote for Apple TV, as well as Magic Mouse, Magic Keyboard, and Magic Trackpad.
What is the maximum power output for this cable?
This cable is designed for power capabilities of up to 20W and supports a voltage rating of 30V.
Is this cable reversible?
Yes, both the USB-C Male and Lightning Male connectors feature a symmetrical design, allowing them to be plugged in regardless of orientation.
What data transfer speed can I expect?
This cable utilizes USB 2.0 technology to provide a data transfer rate of 480 MBPS.
