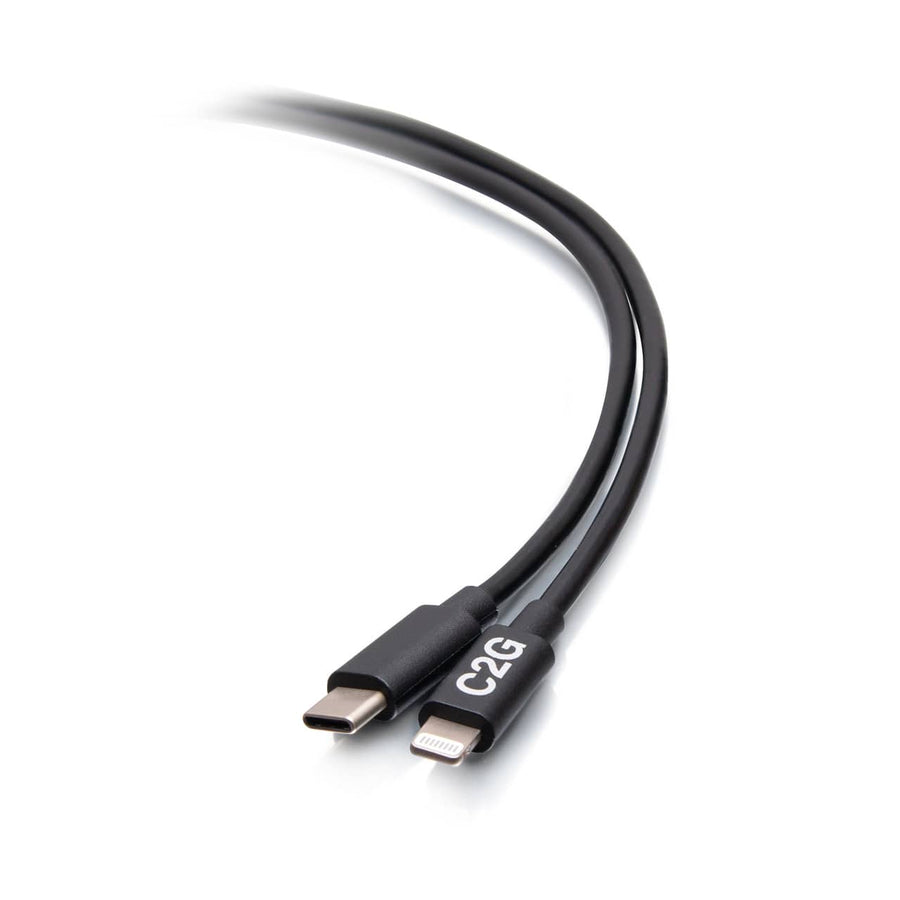

3ft (0.9m) USB-C® Male to Lightning Male Sync and Charging Cable - Black
3ft (0.9m) USB-C Male to Lightning Male cable for high-speed data sync and 20W charging
The C2G54555 is a 3 ft (0.9 m) USB-C Male to Lightning Male Sync and Charging Cable designed for reliable power delivery and data transfer. This black cable is MFi-certified, ensuring it is safe for use with Apple devices and prevents damage to connector ports. It is compatible with a wide range of Lightning-enabled hardware, including iPhones, iPads, and iPods, as well as AirPods, the Apple Pencil, the Siri Remote for Apple TV, Magic Mouse, Magic Keyboard, and Magic Trackpad. Featuring a USB 2.0 data bandwidth with a 480 Mbps transfer rate, it supports efficient data synchronization. The USB-C and Lightning connectors utilize a symmetrical, reversible design, allowing for immediate plug-and-play functionality without worrying about orientation. This cable supports a maximum power output of 20W and is rated for a voltage of 30V. It is built with a PVC jacket and a cable diameter of 0.13 in (3.2 mm), with a minimum bend radius of 0.63 in (16 mm). This cable is compliant with NDAA 889, RoHS, and REACH standards.
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
Main specifications 8
| Bend Radius | 0.63 in (16 mm) |
| Cable Diameter | 0.13 in (3.2 mm) |
| Cable Length | 3 ft (0.9 m) |
| Operating Humidity Max | 85% RH (Non-Condensing) |
| Operating Humidity Min | 15% RH (Non-Condensing) |
| Operating Temperature | 32° - 113°F (0° - 45°C) |
| Storage Humidity Max | 85% RH (Non-Condensing) |
| Storage Humidity Min | 15% RH (Non-Condensing) |
All other specifications 13
| Storage Temperature Max | 167 Fahrenheit (75 Celsius) |
| Storage Temperature Min | 32 Fahrenheit (0 Celsius) |
| Watts | 20 W |
| Color | Black |
| Connector 1 | (1) USB-C Male |
| Connector 2 | (1) Lightning Male |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120545552 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 480 MBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
Questions about this part
Will the C2G54555 work with my Apple devices?
Yes, this MFi-certified cable is compatible with Lightning-enabled devices including iPhones, iPads, iPods, AirPods, Apple Pencil, and the Siri Remote for Apple TV.
What is the maximum power output for this cable?
The C2G54555 supports a maximum of 20W power delivery and is rated for 30V.
How fast can I transfer data with this cable?
This cable utilizes USB 2.0 technology, supporting data transfer rates of 480 Mbps.
Is this cable compliant with NDAA standards?
Yes, this SKU is compliant with NDAA 889 and meets RoHS and REACH requirements.
What is the difference between this and the white version?
The C2G54555 is the black color variant of this USB-C to Lightning series; other versions in this series are available in white.
