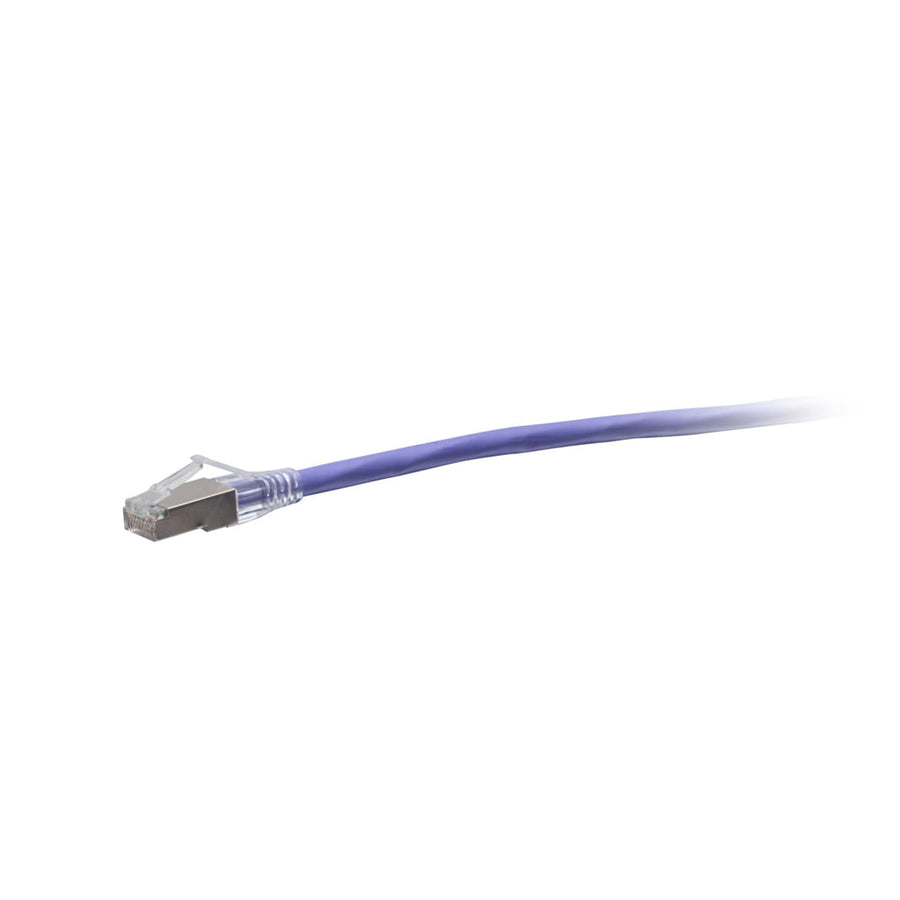

3ft (0.9m) TAA-Compliant F-Series Cat6a Snagless Shielded (STP) Network Cable - Purple
3ft (0.9m) Cat6a shielded STP patch cable, TAA-compliant, with snagless RJ-45 connectors in purple
The C2G43941 is a 3ft (0.9m) TAA-compliant Cat6a Snagless Shielded (STP) Network Cable in purple, engineered specifically for high-speed 10GBase-T environments. This passive patch cable is designed to protect 10 Gigabit Ethernet connections from electromagnetic interference (EMI), radio frequency interference (RFI), and alien crosstalk by utilizing an aluminum foil shield and stranded copper conductors. It meets or exceeds ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards, making it suitable for bandwidth-intensive voice, data, and video distribution. This cable features 50-micron gold-plated contacts to ensure signal integrity and a snagless RJ-45 connector design that protects the clips from damage during high-frequency insertion cycles. Constructed with high-quality, made-in-the-USA raw cable, it features a CMR-rated PVC jacket for riser applications. This specific SKU is part of the F-Series and is TAA-compliant, meeting the requirements for United States government projects and facilities.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 3 ft (0.9 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | STP |
| Shipping Weight | 0.1 lbs (0 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Shielded STP |
| Cable Type | Snagless |
| Color | Purple |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120439417 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
20 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP2050NA$94.99
42 Inch Enclosure with Screw-On Cover
EN4200$189.99
9 Inch Dual-Purpose In-Wall Enclosure
ENP0900NA$39.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
Questions about this part
Is the C2G43941 TAA compliant?
Yes, this is a TAA-compliant F-Series cable approved for use in United States government projects and facilities.
What type of shielding does this Cat6a cable use?
This cable uses Shielded STP (Screened Twisted Pair) with aluminum foil shielding to counter EMI and RFI in 10 Gigabit networks.
Will this cable work for 10 Gigabit Ethernet applications?
Yes, it is designed for 10GBase-T ports and meets ANSI/TIA-568.2-D standards for high-speed data distribution.
What is the cable's jacket rating for installation?
This cable features a PVC jacket with a CMR (Riser) rating, making it suitable for riser applications.
Does this cable support high-density patching?
The snagless RJ-45 connector design protects the clips from snapping, making it suitable for applications with high insertion cycles.
