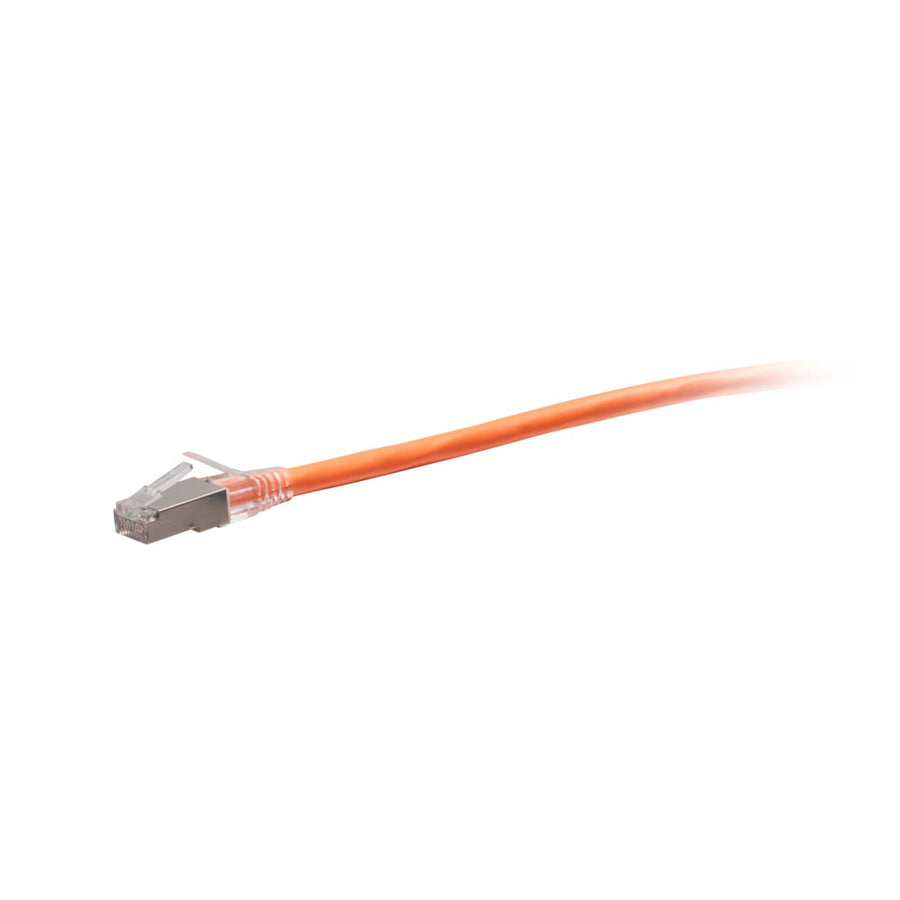

3ft (0.9m) TAA-Compliant F-Series Cat6a Snagless Shielded (STP) Network Cable - Orange
3ft (0.9m) Orange Cat6a Snagless Shielded (STP) TAA-Compliant Network Cable
The C2G43920 is a 3ft (0.9m) TAA-Compliant Cat6a snagless shielded (STP) network cable, finished in orange. This cable is designed to support high-bandwidth 10GBASE-T (10 Gigabit Ethernet) applications by meeting or exceeding ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards. It features a snagless RJ45 design that protects the connector clips from breaking, which is particularly useful in environments requiring high insertion cycles. The cable uses 26 AWG stranded copper conductors with 50-micron gold-plated contacts to maintain signal integrity. To protect high-speed connections from EMI, RFI, and alien crosstalk, it is constructed with an aluminum foil shield (STP). This specific SKU is rated for Riser (CMR) applications with a PVC jacket and is suitable for operating in temperatures ranging from -4°F to 167°F (-20°C to 75°C). The TAA-compliant construction makes it approved for use in United States government projects and facilities.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 3 ft (0.9 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | STP |
| Shipping Weight | 0.1 lbs (0 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Shielded STP |
| Cable Type | Snagless |
| Color | Orange |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120439202 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
20 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP2050NA$94.99
42 Inch Enclosure with Screw-On Cover
EN4200$189.99
9 Inch Dual-Purpose In-Wall Enclosure
ENP0900NA$39.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
Questions about this part
Is the C2G43920 TAA compliant?
Yes, this cable is TAA-compliant and is approved for use in United States government projects and facilities.
Can this Cat6a cable be used for 10 Gigabit Ethernet?
Yes, it meets or exceeds ANSI/TIA-568.2-D standards for supporting 10GBASE-T (10 Gigabit Ethernet) applications.
What is the difference between this and the unshielded versions?
This SKU features Shielded STP construction with an aluminum foil shield to counter EMI, RFI, and alien crosstalk in high-speed environments.
Will the connector clips break during installation?
The snagless RJ45 connector design is specifically engineered to protect clips from being snapped off during insertion and removal.
What is the maximum operating temperature for this cable?
This cable is rated to operate in temperatures between -4°F and 167°F (-20°C to 75°C).
