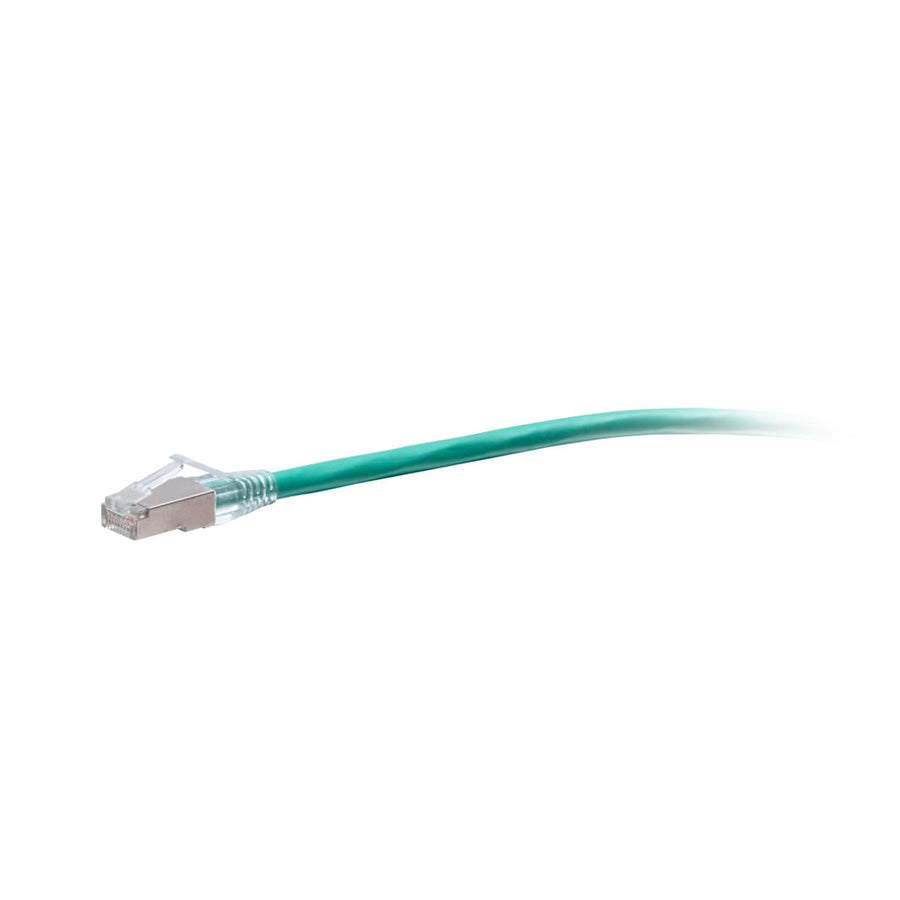

3ft (0.9m) TAA-Compliant F-Series Cat6a Snagless Shielded (STP) Network Cable - Green
3ft TAA-compliant Cat6a shielded patch cable, green finish, snagless RJ45 connectors for 10GBase-T applications
The C2G43857 is a 3ft (0.9m) TAA-compliant Category 6A shielded patch cable designed for high-speed networking environments. This green cable is constructed with high-quality, made in the USA copper cabling and features an aluminum foil shield (STP) to protect 10GBase-T connections from electromagnetic interference (EMI), radio frequency interference (RFI), and alien crosstalk. It is built to meet or exceed ANSI/TIA-568.2-D and ISO/IEC 11801-1 standards, making it suitable for bandwidth-intensive applications including switches, routers, and hubs. Each cable features a snagless RJ45 connector design to protect the clips from snapping during high-insertion cycles. The 50-micron gold-plated contacts ensure signal integrity for critical voice, data, and video distribution. This CMR rated riser cable is ideal for government projects requiring TAA compliance and operates within a temperature range of -4°F to 167°F (-20°C to 75°C). The jacket is made of durable PVC with a 0.24 in (6 mm) diameter.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 3 ft (0.9 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | STP |
| Shipping Weight | 0.1 lbs (0 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Shielded STP |
| Cable Type | Snagless |
| Color | Green |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120438571 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
20 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP2050NA$94.99
42 Inch Enclosure with Screw-On Cover
EN4200$189.99
9 Inch Dual-Purpose In-Wall Enclosure
ENP0900NA$39.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
Questions about this part
Is the C2G43857 TAA compliant for government contracts?
Yes, the C2G43857 is TAA compliant, making it approved for use in United States government projects and facilities.
What type of shielding does this Cat6a cable use?
This is a Shielded STP (Screened Twisted Pair) cable featuring an aluminum foil shield to mitigate interference and crosstalk.
What is the maximum operating temperature for this green patch cable?
The cable is rated for operating temperatures ranging from -4°F to 167°F (-20°C to 75°C).
Does this cable support 10 Gigabit Ethernet?
Yes, this Cat6a cable is designed to support 10GBase-T (10 Gigabit Ethernet) and meets ANSI/TIA-568.2-D standards.
What is the difference between this and the unshielded versions?
While this C2G43857 SKU is a shielded STP cable, other variants in the F-Series may be unshielded depending on the specific model chosen.
