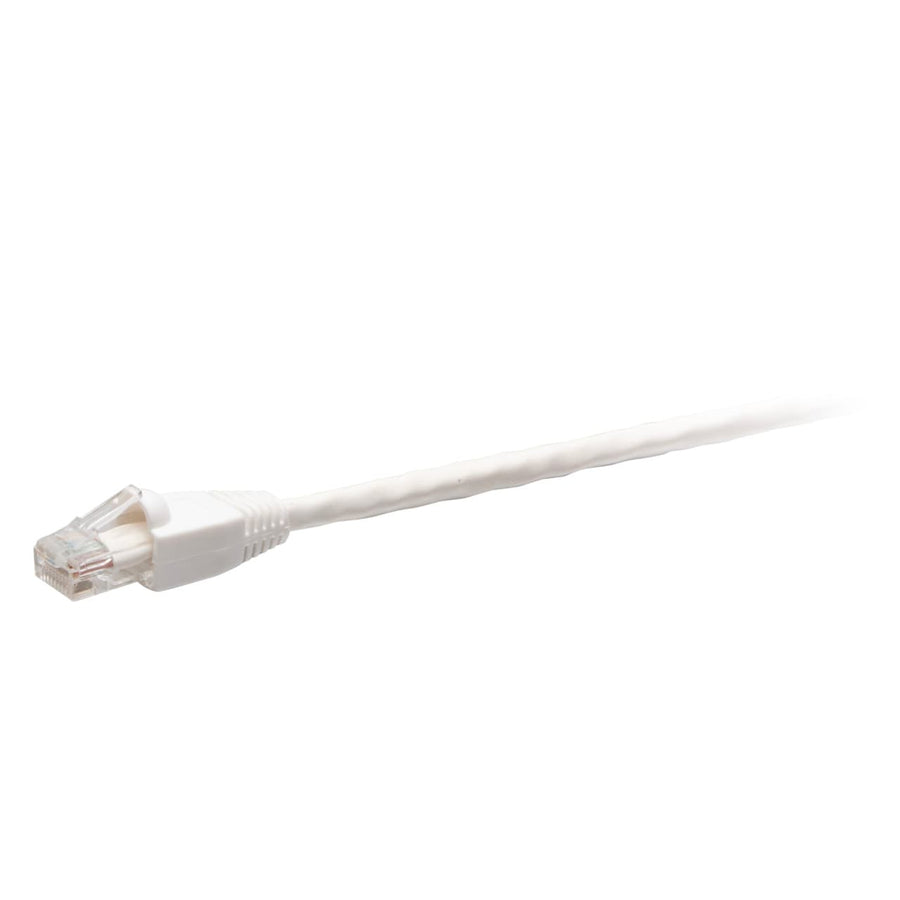

3ft (0.9m) TAA-Compliant F-Series Cat6 Snagless Unshielded (UTP) Network Cable - White
White 3ft (0.9m) TAA-compliant Cat6 UTP patch cable with snagless RJ45 connectors and 24 AWG stranded copper conductors
The C2G43572 is a 3ft (0.9m) TAA-Compliant F-Series Cat6 Unshielded (UTP) Network Cable in white. This passive cable is engineered to meet or exceed ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards, making it suitable for 1000BASE-T (1 Gigabit Ethernet) applications. It is constructed with high-quality, made in the USA raw copper cabling, utilizing 24 AWG stranded conductors and 50-micron gold-plated contacts to ensure signal integrity. The design features a snagless RJ45 male to RJ45 male configuration, with a molded snagless boot intended to protect the clips from damage during high-frequency insertion cycles and to provide strain relief. This cable is rated for Riser (CMR) applications and has a PVC jacket with a 0.22 in (5.6 mm) diameter. As a TAA-compliant product, it is approved for use in United States government projects and facilities. The cable operates within a temperature range of -4° - 167°F (-20° - 75°C). This 3ft white cable is part of the F-Series, which is available in various other colors and lengths up to 100ft.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 3 ft (0.9 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 0.86 lbs (0.4 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Snagless |
| Color | White |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120435723 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
