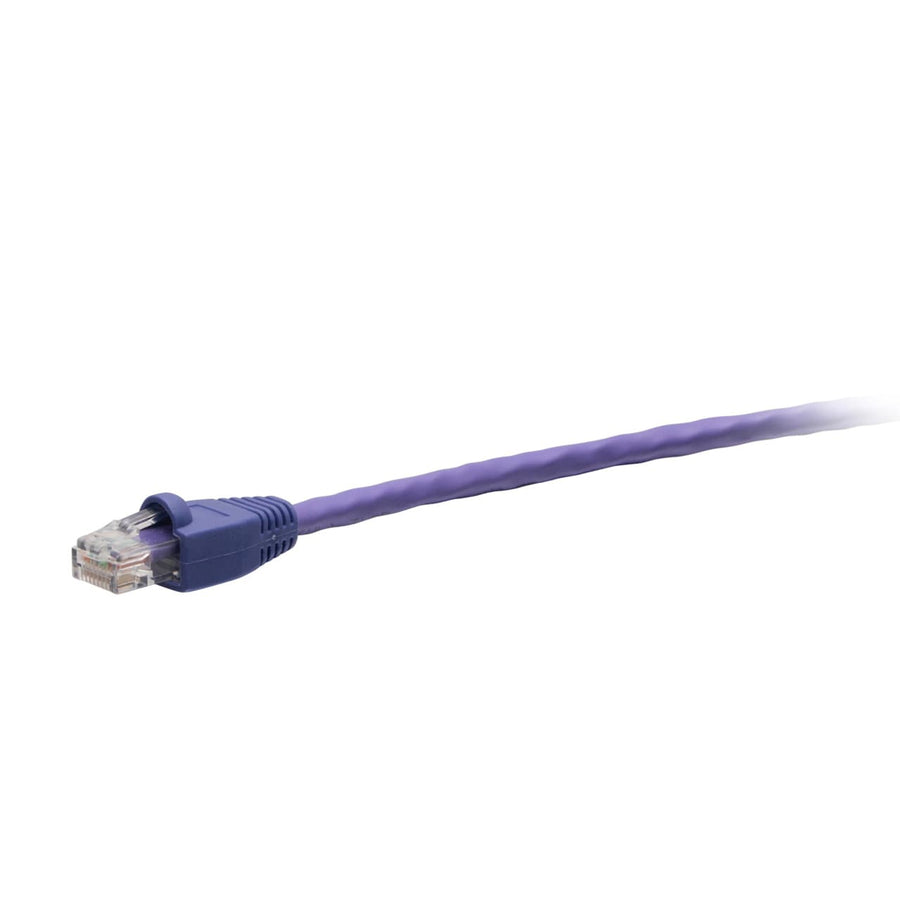

3ft (0.9m) TAA-Compliant F-Series Cat6 Snagless Unshielded (UTP) Network Cable - Purple
3ft (0.9m) TAA-compliant Cat6 Unshielded UTP cable in purple, featuring snagless RJ-45 connectors and 24 AWG copper conductors
The C2G43551 is a 3 ft (0.9 m) TAA-compliant Cat6 snagless unshielded (UTP) network cable designed for high-performance connectivity in professional environments. This cable is approved for use in United States government projects and facilities due to its TAA compliance. It features a purple PVC jacket and is rated CMR for riser applications. The cable is constructed with high-quality, made in the USA copper conductors with 24 AWG stranding, supporting a maximum frequency of 600 MHz. For reliable signal integrity, the two RJ-45 male connectors are equipped with 50-micron gold-plated contacts. The snagless boot design protects the clips from snapping off, which is beneficial for applications involving high insertion cycles. This passive cable meets or exceeds ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards, supporting 1000BASE-T (1 Gigabit Ethernet) applications. It operates within a temperature range of -4° - 167°F (-20° - 75°C) and is suitable for connecting network adapters, hubs, switches, routers, and servers.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 3 ft (0.9 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 0.86 lbs (0.4 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Snagless |
| Color | Purple |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120435518 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
48-Port Cat6 110-Type Patch Panel
CG37200$327.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
Questions about this part
Is the C2G43551 TAA compliant?
Yes, this is a TAA-compliant cable suitable for use in United States government projects and facilities.
What is the maximum frequency and speed support for this Cat6 cable?
This cable supports a 600 MHz maximum frequency and is capable of supporting 1000BASE-T (1 Gigabit Ethernet) applications.
Can this cable be used in riser applications?
Yes, this cable features a CMR rated jacket specifically for riser applications.
What is the connector type on this network cable?
The C2G43551 features two RJ-45 male connectors with a snagless boot design for added strain relief.
What is the temperature operating range for the C2G43551?
The operating temperature range for this cable is -4° - 167°F (-20° - 75°C).
