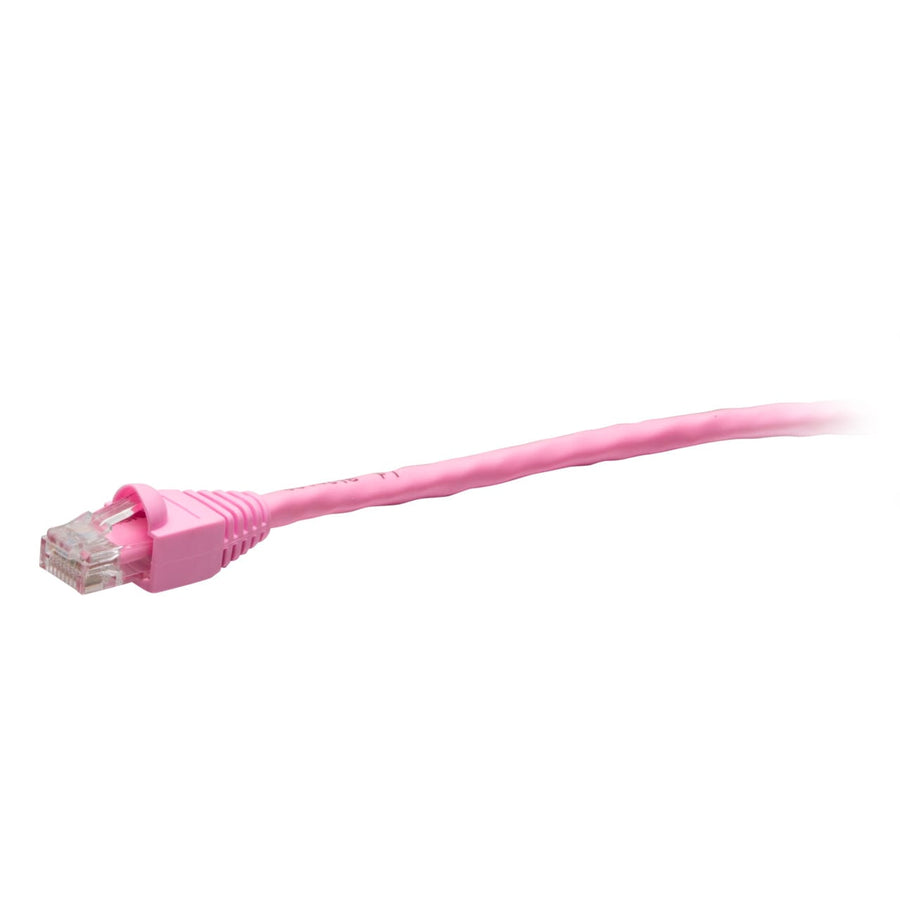

3ft (0.9m) TAA-Compliant F-Series Cat6 Snagless Unshielded (UTP) Network Cable - Pink
3ft pink Cat6 Unshielded UTP network cable, TAA-compliant and snagless design for high-cycle applications
The C2G43593 is a 3 ft (0.9 m) TAA-compliant Cat6 network cable designed for use in United States government projects and facilities. This Unshielded Twisted Pair (UTP) cable is built with high-quality, made in the USA stranded copper conductors and 24 AWG wire gauge. It is engineered to support various high-performance applications, including 1000BASE-T (1 Gigabit Ethernet), meeting or exceeding ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards. The snagless RJ45 male connectors feature 50-micron gold-plated contacts to maintain signal integrity and a molded boot to protect the clips from snapping during high-frequency insertion cycles. This CMR rated riser cable features a PVC jacket and is rated for operating temperatures between -4° - 167°F (-20° - 75°C). The pink color allows for easy identification and color-coding within complex network environments, such as server rooms or data centers.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 3 ft (0.9 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 0.86 lbs (0.4 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Snagless |
| Color | Pink |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120435938 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
48-Port Cat6 110-Type Patch Panel
CG37200$327.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
Questions about this part
Is the C2G43593 TAA compliant for government use?
Yes, this cable is TAA-compliant and meets the requirements for use in United States government projects and facilities.
What is the difference between the snagless design and a standard RJ45 connector?
The molded snagless boot protects the connector clips from being snapped off, making it ideal for applications involving high insertion cycles.
Can this Cat6 cable be used in plenum environments?
This SKU is CMR rated for riser applications; it is not a plenum-rated cable.
What performance standard does this network cable meet?
This cable meets or exceeds ANSI/TIA-568.2-D and ISO/IEC 11801-1 standards for Category 6 performance.
Does this cable support Gigabit Ethernet?
Yes, this cable is designed for applications including 1000BASE-T (1 Gigabit Ethernet).
