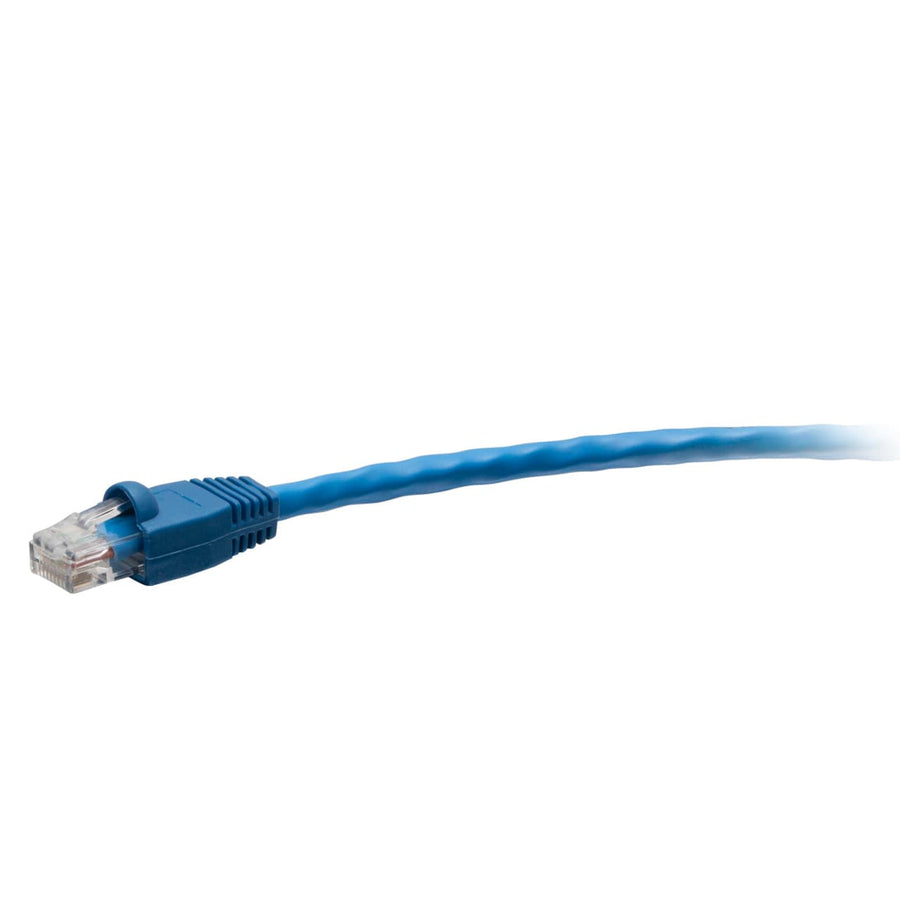

3ft (0.9m) TAA-Compliant F-Series Cat6 Snagless Unshielded (UTP) Network Cable - Blue
3ft TAA-compliant Cat6 Unshielded UTP network cable with blue snagless RJ45 connectors
The C2G43446 is a 3ft (0.9m) TAA-compliant Cat6 Unshielded (UTP) network cable finished in blue. This passive cable is constructed with high-quality, made-in-the-USA copper stranded conductors and 24 AWG wire gauge. It is designed to support a variety of network applications, including 1000BASE-T (1 Gigabit Ethernet), while meeting or exceeding ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards. The cable features an enhanced 600 MHz maximum frequency for reliable performance in environments such as hubs, switches, routers, and servers. Each RJ45 male connector is equipped with 50-micron gold-plated contacts for signal integrity and a molded, snagless boot to protect the clips from damage during installation or high-cycle use. This CMR rated cable uses a PVC jacket suitable for riser applications and operates within a temperature range of -4° to 167°F (-20° to 75°C).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 3 ft (0.9 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 0.86 lbs (0.4 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Snagless |
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120434467 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
48-Port Cat6 110-Type Patch Panel
CG37200$327.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
Questions about this part
Is the C2G43446 TAA compliant?
Yes, this is a TAA-compliant F-Series network cable, approved for use in United States government projects and facilities.
What is the maximum frequency and speed of this Cat6 cable?
This cable provides an enhanced 600 MHz maximum frequency and supports 1000BASE-T (1 Gigabit Ethernet) applications.
What is the jacket rating for this network cable?
This cable has a CMR (Riser) rated PVC jacket and is suitable for riser applications.
What are the connector types on the C2G43446?
The cable is equipped with two RJ45 male connectors featuring snagless boots to protect the clips.
Does this cable use stranded or solid copper?
The C2G43446 is constructed with made-in-the-USA stranded copper conductors and 24 AWG wire.
